A square steel plate is 13.0 cm on a side and 0.400 cm thick. Assume that the plate is oriented with the square faces ho

[answerhappygod]

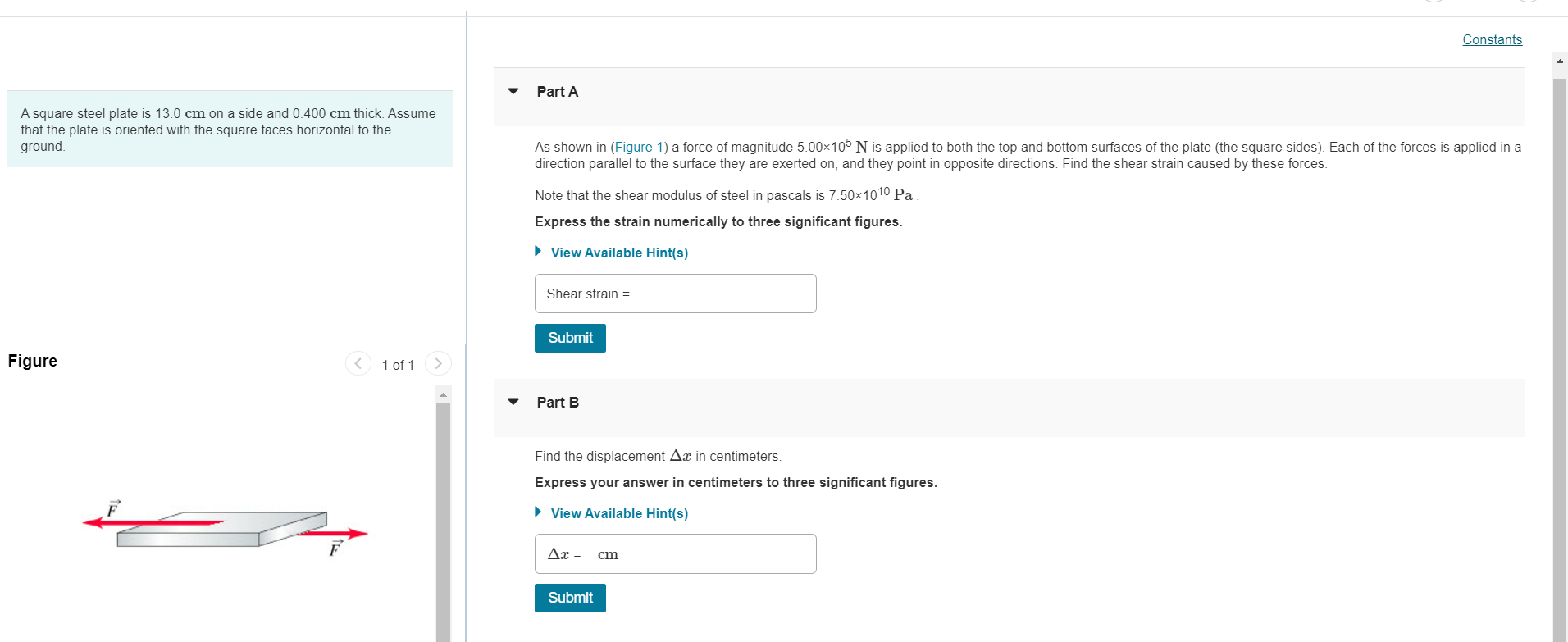

A Square Steel Plate Is 13 0 Cm On A Side And 0 400 Cm Thick Assume That The Plate Is Oriented With The Square Faces Ho 1 (72.12 KiB) Viewed 46 times

A square steel plate is 13.0 cm on a side and 0.400 cm thick. Assume that the plate is oriented with the square faces horizontal to the ground. Figure 1 of 1 Part A As shown in (Figure 1) a force of magnitude 5.00×105 N is applied to both the top and bottom surfaces of the plate (the square sides). Each of the forces is applied in a direction parallel to the surface they are exerted on, and they point in opposite directions. Find the shear strain caused by these forces. Note that the shear modulus of steel in pascals is 7.50×101⁰ Pa Express the strain numerically to three significant figures. ► View Available Hint(s) Shear strain = Submit Part B Find the displacement Ax in centimeters. Express your answer in centimeters to three significant figures. ► View Available Hint(s) Ax= Submit Constants cm
