b) Suppose the memory cells at address 00 to 05 in the machine described in language description table contains the bit

[answerhappygod]

B Suppose The Memory Cells At Address 00 To 05 In The Machine Described In Language Description Table Contains The Bit 1 (56.38 KiB) Viewed 33 times

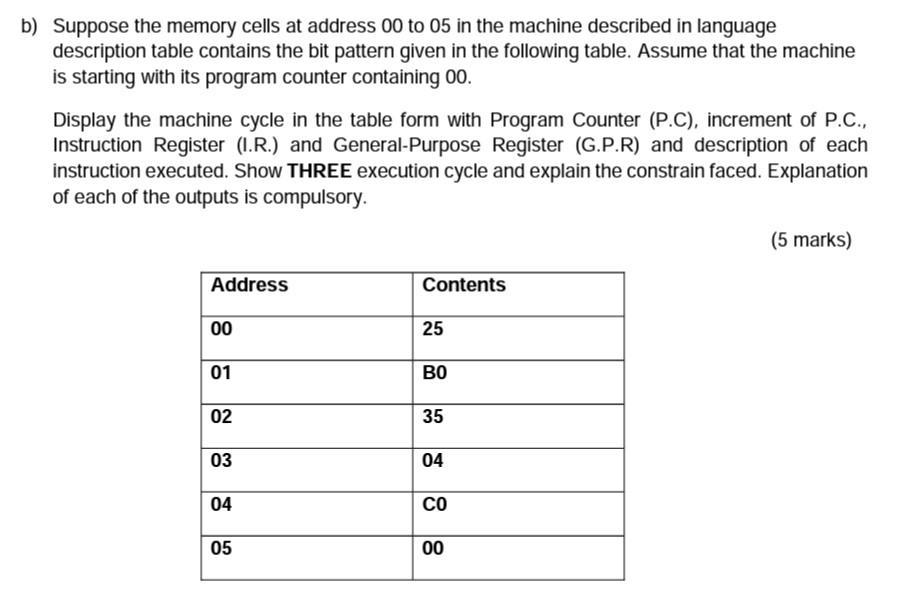

b) Suppose the memory cells at address 00 to 05 in the machine described in language description table contains the bit pattern given in the following table. Assume that the machine is starting with its program counter containing 00. Display the machine cycle in the table form with Program Counter (P.C), increment of P.C., Instruction Register (I.R.) and General-Purpose Register (G.P.R) and description of each instruction executed. Show THREE execution cycle and explain the constrain faced. Explanation of each of the outputs is compulsory. Address 00 01 02 03 04 05 Contents 25 ВО 35 04 CO 00 (5 marks)
