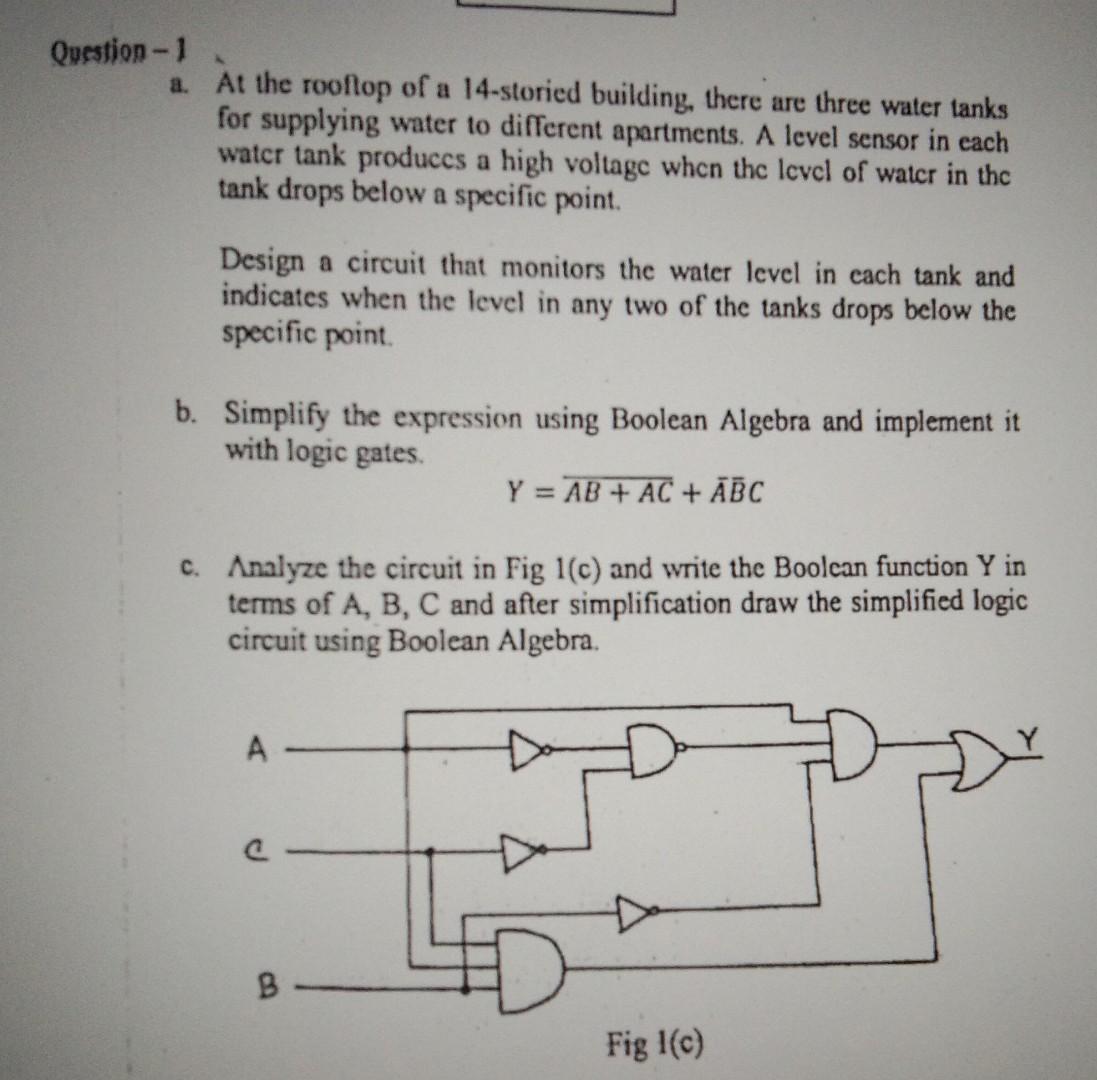

Question-1 a. At the rooftop of a 14-storied building, there are three water tanks for supplying water to different apartments. A level sensor in each water tank produccs a high voltage when the level of water in the tank drops below a specific point. Design a circuit that monitors the water level in each tank and indicates when the level in any two of the tanks drops below the specific point. b. Simplify the expression using Boolean Algebra and implement it with logic gates. Y = AB + AC + ABC c. Analyze the circuit in Fig 1(c) and write the Boolean function Y in terms of A, B, C and after simplification draw the simplified logic circuit using Boolean Algebra. A B Fig 1(c)
