In a division operation, list the binary values of quotient, divisor and remainder for the following division: Dividend

[answerhappygod]

In A Division Operation List The Binary Values Of Quotient Divisor And Remainder For The Following Division Dividend 1 (88.18 KiB) Viewed 55 times

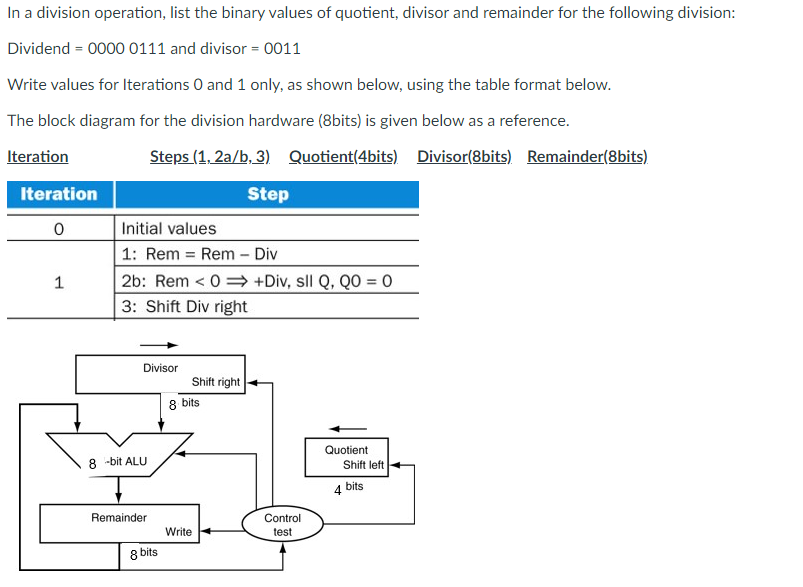

In a division operation, list the binary values of quotient, divisor and remainder for the following division: Dividend = 0000 0111 and divisor = 0011 Write values for Iterations 0 and 1 only, as shown below, using the table format below. The block diagram for the division hardware (8bits) is given below as a reference. Iteration Iteration 0 1 Initial values 1: Rem Rem - Div 2b: Rem <0+Div, sll Q, QO = 0 3: Shift Div right Steps (1, 2a/b, 3) Quotient (4bits) Divisor(8bits) Remainder(8bits) Step Divisor 8-bit ALU Remainder 8 bits Shift right 8 bits Write Control test Quotient Shift left 4 bits
