QUESTION 4-(30 Marks) Using the PING utility, PC1 would like to check the status of PCS. The IP address and subnet mask

[answerhappygod]

Question 4 30 Marks Using The Ping Utility Pc1 Would Like To Check The Status Of Pcs The Ip Address And Subnet Mask 1 (34.88 KiB) Viewed 33 times

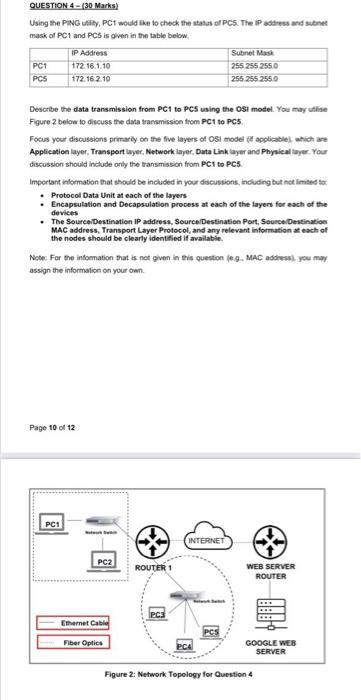

QUESTION 4-(30 Marks) Using the PING utility, PC1 would like to check the status of PCS. The IP address and subnet mask of PC1 and PCS is given in the table below. PC1 PCS IP Address 172.16.1.10 172.16.2.10 Describe the data transmission from PC1 to PCS using the OSI model. You may utise Figure 2 below to discuss the data transmission from PC1 to PCS Focus your discussions primarily on the five layers of OSI model ( applicable), which are Application layer, Transport layer, Network layer, Data Link layer and Physical layer. Your discussion should include only the transmission from PC1 to PCS Important information that should be included in your discussions, including but not limited to: • Protocol Data Unit at each of the layers • Encapsulation and Decapsulation process at each of the layers for each of the devices • The Source/Destination IP address, Source/Destination Port, Source/Destination MAC address, Transport Layer Protocol, and any relevant information at each of the nodes should be clearly identified if available. Note: For the information that is not given in this question (eg.. MAC address), you may assign the information on your own. Page 10 of 12 PC1 PC2 Ethernet Cable Subnet Mask 255.255.255.0 255.255.255.0 Fiber Optics ROUTER 1 INTERNET PCA WEB SERVER ROUTER GOOGLE WEB SERVER Figure 2: Network Topology for Question 4
