Nala has decided to open a new college, name Nala's College. As the Senior Network Engineer hired in Nala's College, you are required to proposed the networking infrastructure in the new college. The college building consists of a total of three floors. The table below provides the information related to each floor. Floors Ground Floor First Floor Second Floor Table 1: College Network's Requirement Department / Labs Technical Department Sales & Marketing Finance Human Resource Social Spaces for Parents Academic Suite Lecture Hall 1, Lecture Hall 2, Number of Device Required IP 4 20 10 10 200 200 Each Lecture Hall required 300 IP Address Engineering Lab 1, Engineering Lab 2, Engineering Lab 3, Engineering Lab 4, Computer Lab 1, Computer Lab 2, Computer Lab 3, Computer Lab 4, IP Address Computer Lab 5, Computer Lab 6, Computer Lab 7, Computer Lab 8, Each Engineering Lab required 30 IP Address Each Computer Lab required 40

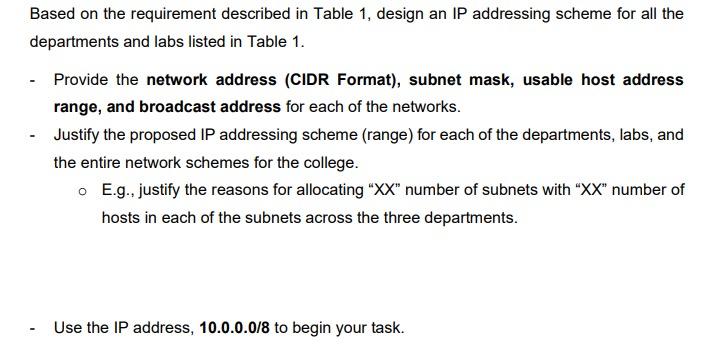

Based on the requirement described in Table 1, design an IP addressing scheme for all the departments and labs listed in Table 1. Provide the network address (CIDR Format), subnet mask, usable host address range, and broadcast address for each of the networks. Justify the proposed IP addressing scheme (range) for each of the departments, labs, and the entire network schemes for the college. o E.g., justify the reasons for allocating "XX" number of subnets with "XX" number of hosts in each of the subnets across the three departments. Use the IP address, 10.0.0.0/8 to begin your task.
