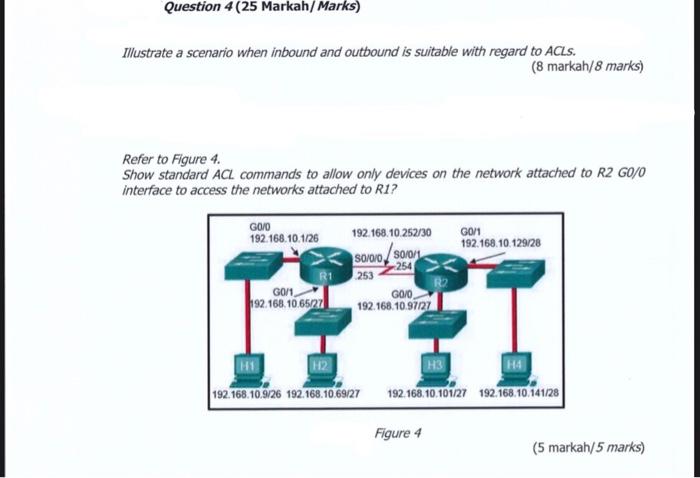

Question 4 (25 Markah/Marks) Illustrate a scenario when inbound and outbound is suitable with regard to ACLS. Refer to Figure 4. Show standard ACL commands to allow only devices on the network attached to R2 G0/0 interface to access the networks attached to R1? GO/D 192.168.10.1/26 G0/1 192.168.10.65/27 192.168.10.252/30 s0/0/0 soro 253 GO/O 192.168.10.97/27 H2 192.168.10.9/26 192.168.10.69/27 (8 markah/8 marks) GO/1 Figure 4 192.168.10.129/28 H3 192.168.10.101/27 192.168.10.141/28 (5 markah/5 marks)

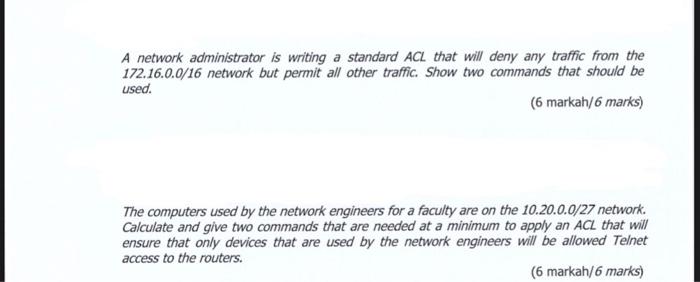

A network administrator is writing a standard ACL that will deny any traffic from the 172.16.0.0/16 network but permit all other traffic. Show two commands that should be used. (6 markah/6 marks) The computers used by the network engineers for a faculty are on the 10.20.0.0/27 network. Calculate and give two commands that are needed at a minimum to apply an ACL that will ensure that only devices that are used by the network engineers will be allowed Telnet access to the routers. (6 markah/6 marks)
