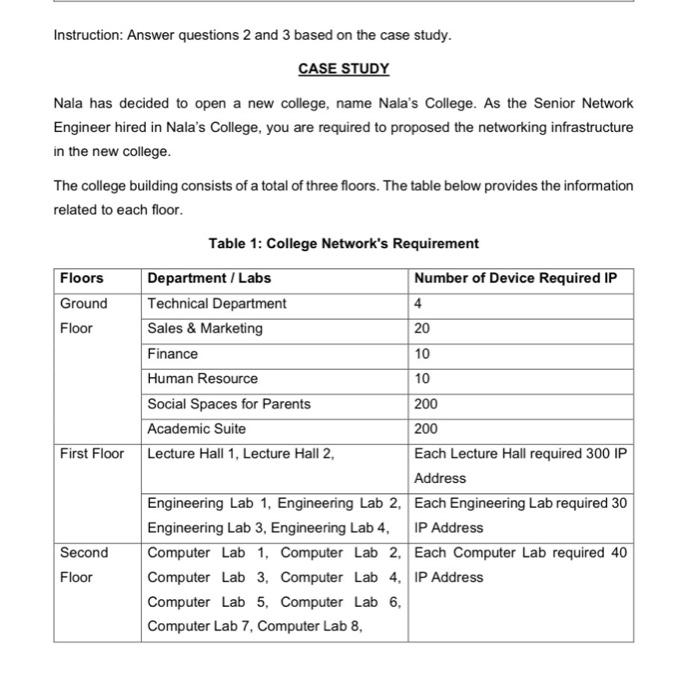

Instruction: Answer questions 2 and 3 based on the case study. CASE STUDY Nala has decided to open a new college, name Nala's College. As the Senior Network Engineer hired in Nala's College, you are required to proposed the networking infrastructure in the new college. The college building consists of a total of three floors. The table below provides the information related to each floor. Floors Ground Floor Table 1: College Network's Requirement Second Floor Department / Labs Technical Department Sales & Marketing Finance Human Resource Social Spaces for Parents Academic Suite First Floor Lecture Hall 1, Lecture Hall 2, Number of Device Required IP 4 20 10 10 200 200 Each Lecture Hall required 300 IP Address Engineering Lab 1, Engineering Lab 2, Engineering Lab 3, Engineering Lab 4, Computer Lab 1, Computer Lab 2. Computer Lab 3, Computer Lab 4. IP Address Computer Lab 5, Computer Lab 6, Computer Lab 7, Computer Lab 8, Each Engineering Lab required 30 IP Address Each Computer Lab required 40
QUESTION 2 (30 Marks) Based on the requirement described in Table 1, design an IP addressing scheme for all the departments and labs listed in Table 1. - Provide the network address (CIDR Format), subnet mask, usable host address range, and broadcast address for each of the networks. - Justify the proposed IP addressing scheme (range) for each of the departments, labs, and the entire network schemes for the college. o E.g., justify the reasons for allocating "XX" number of subnets with "XX" number of hosts in each of the subnets across the three departments. - Note: You may utilize any online tools to perform the subnetting (e.g., https://www.site24x7.com/tools/ipv4- subnetcalculator.html). However, understanding the concept of subnetting is necessary for you to perform the subnetting correctly. - Use the IP address, 10.0.0.0/8 to begin your task QUESTION 3 (20 Marks) Draw a network diagram to illustrate the connection between all the network components and devices in Nala's College. Assume the college has purchased a business fibre internet that comes with an 800 Mbps download speed to provide internet connectivity. - Include the name of all network components (e.g., Router, Switch, 48 Port Gigabit Switch, Wireless Access Point, Fiber- Copper Media Converter etc.) and network cables (e.g., fibre optic, ethernet cable, etc.) in your network diagram. - Extra requirement: Consider suggesting some equipment and services such as Firewall, DHCP, DNS, and other solutions.. - Note: Feel free to include any suitable networking devices to provide convenient connectivity in the campus. - Note: You may split the diagrams into several pages, as necessary. However, please make sure each of the diagrams is labelled and the information inside the network diagram is labelled clearly and correctly. The IP address of each subnet should be labelled. - Note: You are required to provide the list of hardware required to implement the network. Justifications for the selected network hardware should also be provided. - Note: You are also required to justify the selection of cable (e.g., Cat5 / Cat5e or...), to implement the network
