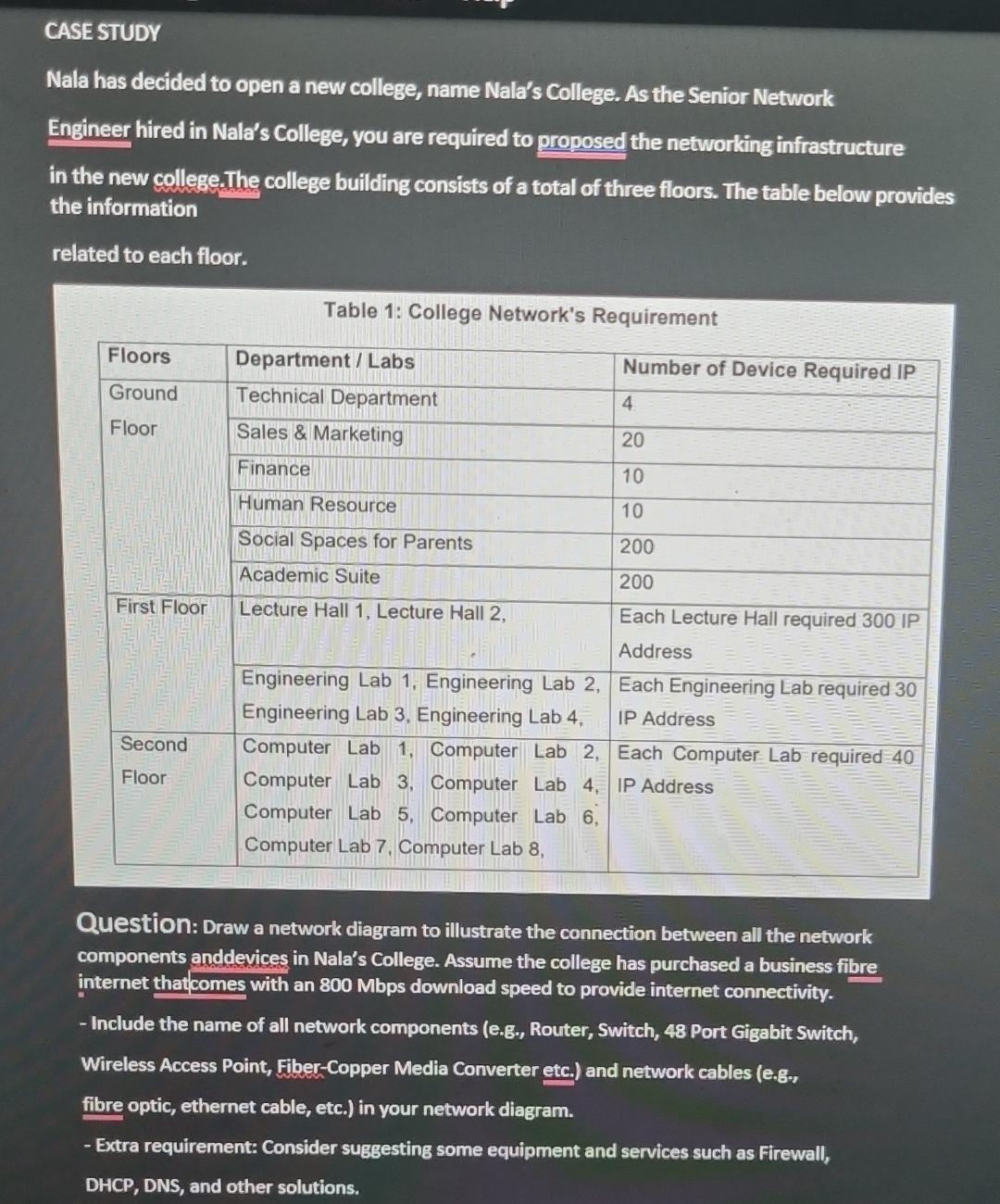

CASE STUDY Nala has decided to open a new college, name Nala's College. As the Senior Network Engineer hired in Nala's College, you are required to proposed the networking infrastructure in the new college. The college building consists of a total of three floors. The table below provides the information related to each floor. Floors Ground Flo First Floor Second Floor Table 1: College Network's Requirement Department / Labs Technical Department Sales & Marketing Finance Human Resource Social Spaces for Parents Academic Suite Lecture Hall 1, Lecture Hall 2, Engineering Lab 1, Engineering Lab 2, Engineering Lab 3, Engineering Lab 4, Computer Lab 1, Computer Lab 2, Computer Lab 3, Computer Lab 4, Computer Lab 5, Computer Lab 6, Computer Lab 7, Computer Lab 8, Number of Device Required IP 4 20 10 10 200 200 Each Lecture Hall required 300 IP Address Each Engineering Lab required 30 IP Address Each Computer Lab required 40 IP Address Question: Draw a network diagram to illustrate the connection between all the network components and devices in Nala's College. Assume the college has purchased a business fibre internet that comes with an 800 Mbps download speed to provide internet connectivity. - Include the name of all network components (e.g., Router, Switch, 48 Port Gigabit Switch, Wireless Access Point, Fiber-Copper Media Converter etc.) and network cables (e.g., fibre optic, ethernet cable, etc.) in your network diagram. - Extra requirement: Consider suggesting some equipment and services such as Firewall, DHCP, DNS, and other solutions.
