QUESTION 4-30 Marka) Using the PING utty, PC1 would like to check the status of PCS The IP address and subnet mask of PC

[answerhappygod]

Question 4 30 Marka Using The Ping Utty Pc1 Would Like To Check The Status Of Pcs The Ip Address And Subnet Mask Of Pc 1 (29.92 KiB) Viewed 34 times

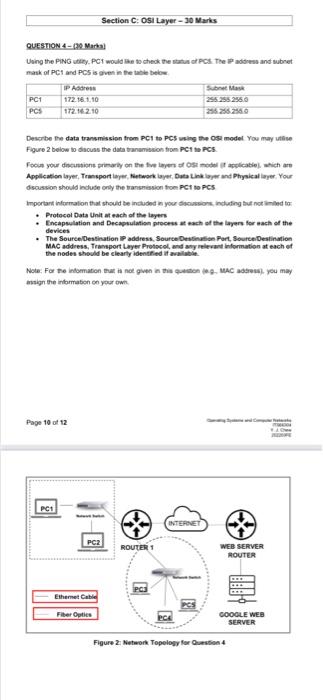

QUESTION 4-30 Marka) Using the PING utty, PC1 would like to check the status of PCS The IP address and subnet mask of PC1 and PCS is given in the table below PC1 PCS IP Address 172.16.1.10 172.16.2.10 Section C: OSI Layer-30 Marks Describe the data transmission from PC1 to PCS using the OSI model You may utilise Figure 2 below to discuss the data transmission from PC1to PCS Focus your discussions primarily on the five layers of OSI model if applicable), which are Application layer, Transport layer, Network layer, Data Link layer and Physical layer. Your discussion should include only the transmission from PC1 to PCS Important information that should be included in your discussions, including but not limited to: . Protocol Data Unit at each of the layers • Encapsulation and Decapsulation process at each of the layers for each of the devices The Source/Destination IP address, Source Destination Port, Source/Destination MAC address, Transport Layer Protocol, and any relevant information at each of the nodes should be clearly identified if available Page 10 of 12 PC1 Note: For the information that is not given in this question (eg. MAC address), you may assign the information on your own Ethernet Cable Fiber Optics Subnet Mask 255.255.255.0 255.255.255.0 ROUTER 1 12 INTERNET WEB SERVER ROUTER GOOGLE WEB SERVER Figure 2: Network Topology for Question 4
