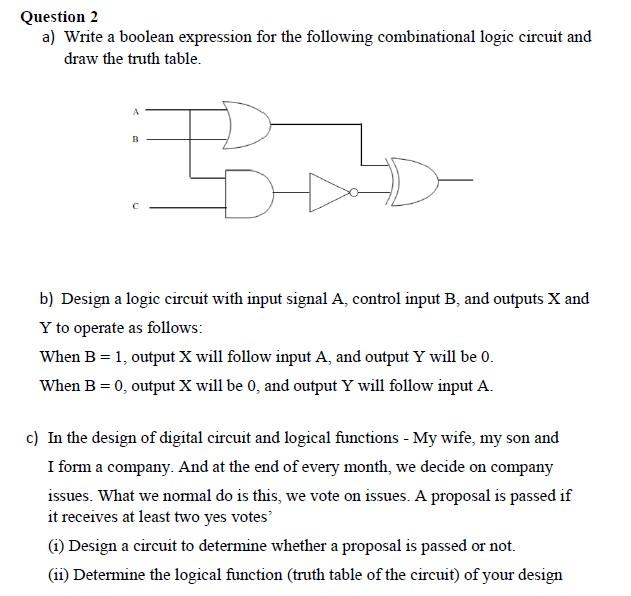

Question 2 a) Write a boolean expression for the following combinational logic circuit and draw the truth table. BAD b)

[answerhappygod]

Question 2 A Write A Boolean Expression For The Following Combinational Logic Circuit And Draw The Truth Table Bad B 1 (51.24 KiB) Viewed 37 times

Question 2 a) Write a boolean expression for the following combinational logic circuit and draw the truth table. BAD b) Design a logic circuit with input signal A, control input B, and outputs X and Y to operate as follows: When B = 1, output X will follow input A, and output Y will be 0. When B = 0, output X will be 0, and output Y will follow input A. c) In the design of digital circuit and logical functions - My wife, my son and I form a company. And at the end of every month, we decide on company issues. What we normal do is this, we vote on issues. A proposal is passed if it receives at least two yes votes' (1) Design a circuit to determine whether a proposal is passed or not. (11) Determine the logical function (truth table of the circuit) of your design
