I need you to do a new procedure, do not repeat or copychegg's previous procedures.
It must show all the procedures in detail, indicatingwhere the results and data obtained come from.
You must draw free bodydiagrams.
I Need You To Do A New Procedure Do Not Repeat Or Copy Chegg S Previous Procedures It Must Show All The Procedures In 1 (168.43 KiB) Viewed 39 times

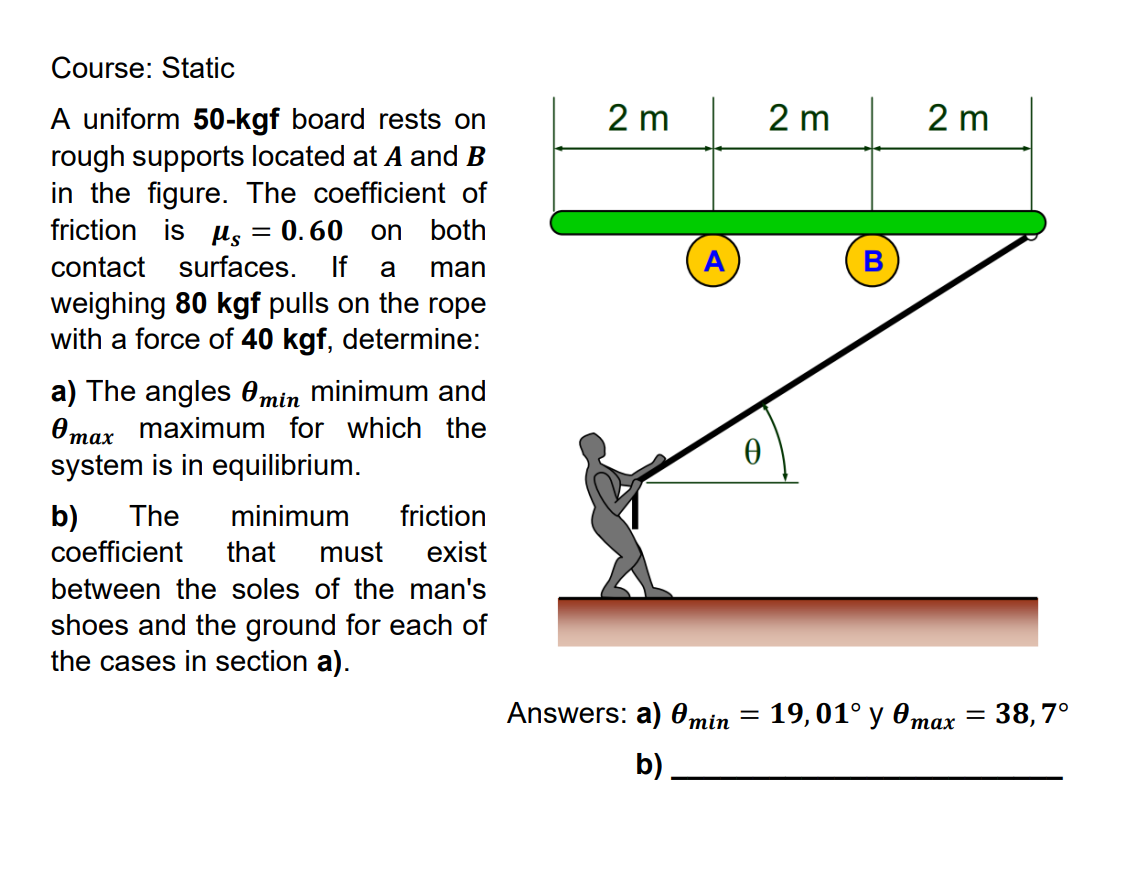

Course: Static man A uniform 50-kgf board rests on rough supports located at A and B in the figure. The coefficient of friction is μ = 0.60 on both contact surfaces. If a weighing 80 kgf pulls on the rope with a force of 40 kgf, determine: a) The angles 0min minimum and max maximum for which the system is in equilibrium. b) The minimum friction coefficient that must exist between the soles of the man's shoes and the ground for each of the cases in section a). 2 m A Ꮎ 2 m B 2 m Answers: a) min = 19, 01° y max b) = 38,7°
