2. Water flows steadily through a pipe, as shown. The pipe consists of two sections of diameters D₁ 4 in and D2 = 1 in w
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2. Water flows steadily through a pipe, as shown. The pipe consists of two sections of diameters D₁ 4 in and D2 = 1 in w

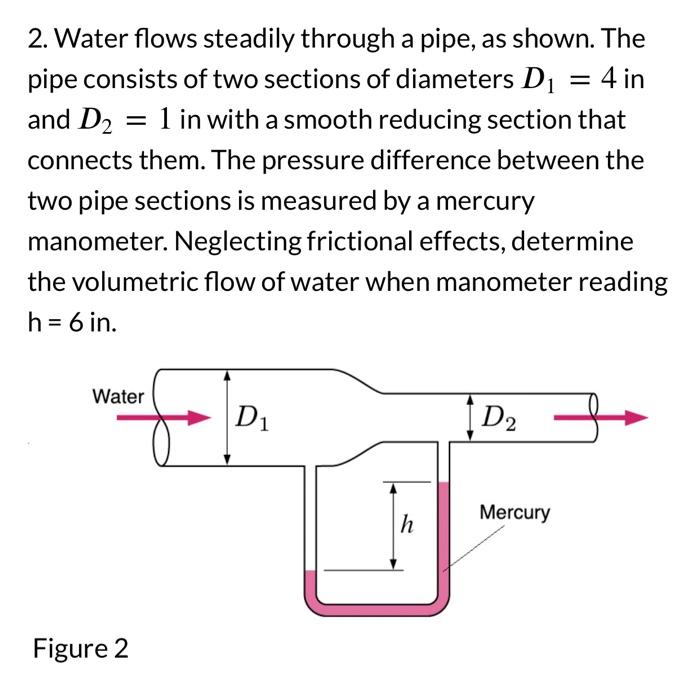

2. Water flows steadily through a pipe, as shown. The pipe consists of two sections of diameters D₁ 4 in and D2 = 1 in with a smooth reducing section that connects them. The pressure difference between the two pipe sections is measured by a mercury manometer. Neglecting frictional effects, determine the volumetric flow of water when manometer reading h = 6 in. Water Figure 2 D₁ h D2 Mercury
