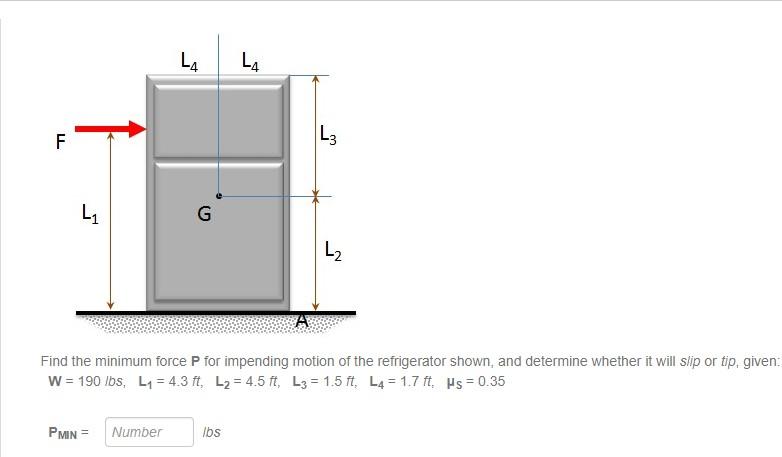

Find the minimum force P for impending motion of therefrigerator shown, and determine whether it will slip or tip,given: W = 190 lbs, L1 = 4.3 ft, L2 = 4.5 ft, L3 = 1.5 ft, L4 = 1.7ft, μS = 0.35
Find The Minimum Force P For Impending Motion Of The Refrigerator Shown And Determine Whether It Will Slip Or Tip Give 1 (23.78 KiB) Viewed 29 times
Find The Minimum Force P For Impending Motion Of The Refrigerator Shown And Determine Whether It Will Slip Or Tip Give 2 (2.23 KiB) Viewed 29 times
Any help would be much appreciated. Thank you!
LL L₁ L4 G L4 PMIN = Number lbs L3 L₂ Find the minimum force P for impending motion of the refrigerator shown, and determine whether it will slip or tip, given: W = 190 lbs, L₁= 4.3 ft, L₂=4.5 ft, L3=1.5 ft, L4 1.7 ft. Hs = 0.35
The refrigerator will: O Slips Tips
