(12 points) Difficulty (4/5) 2013 Michael Swanbom Cc030 a 21 cm At this point, A B A folding tray mechanism is attached

Post by answerhappygod »

12 Points Difficulty 4 5 2013 Michael Swanbom Cc030 A 21 Cm At This Point A B A Folding Tray Mechanism Is Attached 1
12 Points Difficulty 4 5 2013 Michael Swanbom Cc030 A 21 Cm At This Point A B A Folding Tray Mechanism Is Attached 1 (76.83 KiB) Viewed 31 times

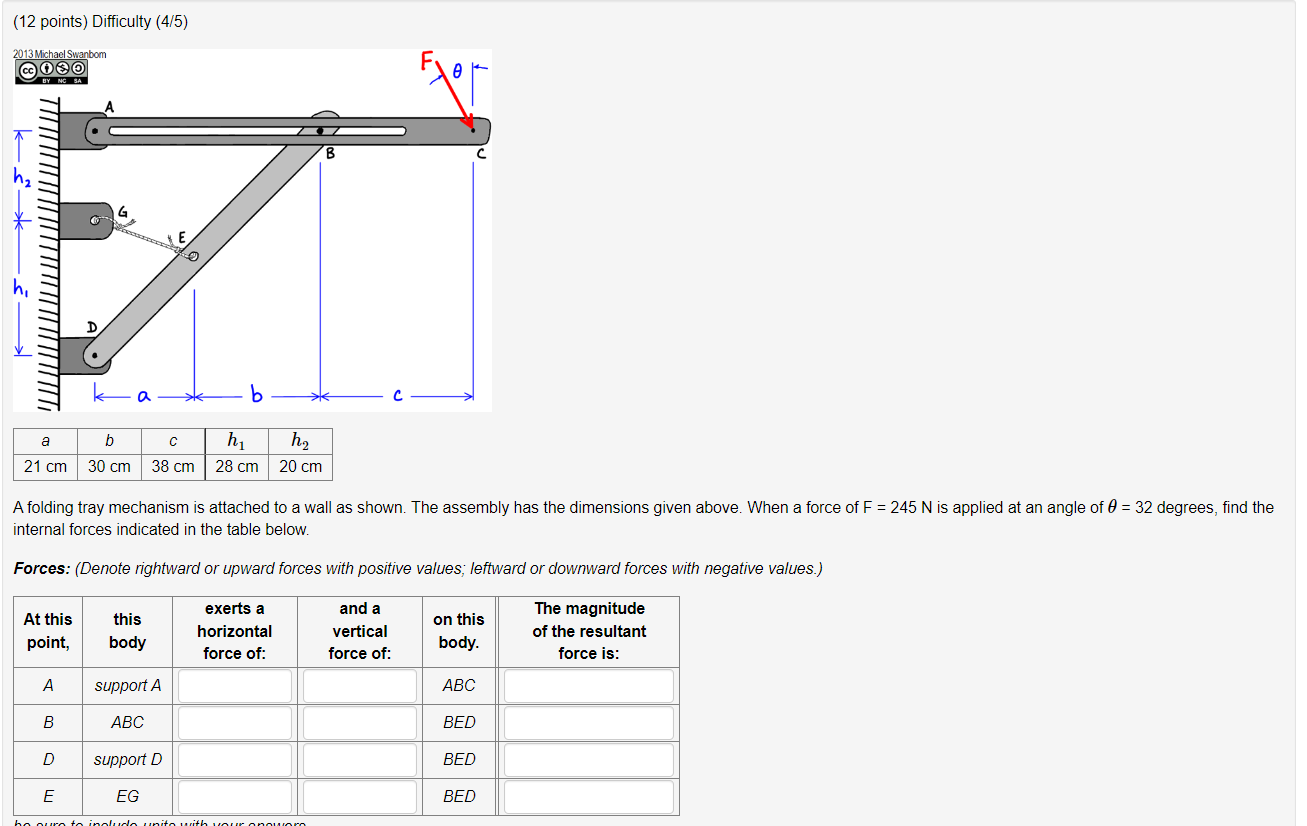

(12 points) Difficulty (4/5) 2013 Michael Swanbom Cc030 a 21 cm At this point, A B A folding tray mechanism is attached to a wall as shown. The assembly has the dimensions given above. When a force of F = 245 N is applied at an angle of 0 = 32 degrees, find the internal forces indicated in the table below. Forces: (Denote rightward or upward forces with positive values; leftward or downward forces with negative values.) The magnitude and a vertical force of: of the resultant force is: D E b с h₁ 30 cm 38 cm 28 cm this body E support A ABC support D EG h₂ 20 cm exerts a horizontal force of: ho ouro to includo unito with your onoworo on this body. ABC BED BED BED
