(8 points) Difficulty (4/5) a 3 b 2 Forces: Trope Fc = с d 3 in 4 in = h 2.6 ft a 2014 Michael Swanbom cc 030 The assemb
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
(8 points) Difficulty (4/5) a 3 b 2 Forces: Trope Fc = с d 3 in 4 in = h 2.6 ft a 2014 Michael Swanbom cc 030 The assemb

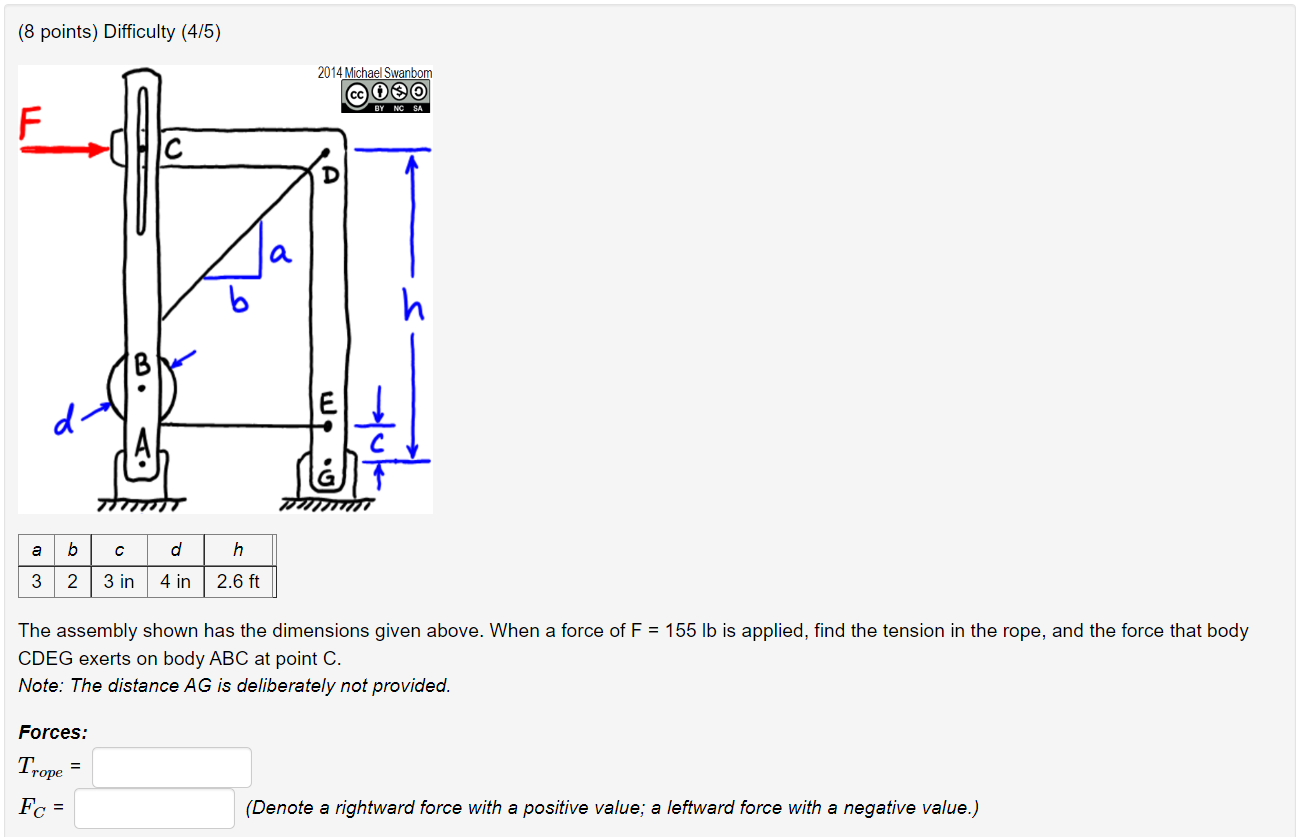

(8 points) Difficulty (4/5) a 3 b 2 Forces: Trope Fc = с d 3 in 4 in = h 2.6 ft a 2014 Michael Swanbom cc 030 The assembly shown has the dimensions given above. When a force of F = 155 lb is applied, find the tension in the rope, and the force that body CDEG exerts on body ABC at point C. Note: The distance AG is deliberately not provided. h (Denote a rightward force with a positive value; a leftward force with a negative value.)
