1. R(s) ► K (s+2)(s+4)(s+6) C(s) a. The system has an OS of 10%. What is the SS error due to the appropriate input? b. D

Post by answerhappygod »

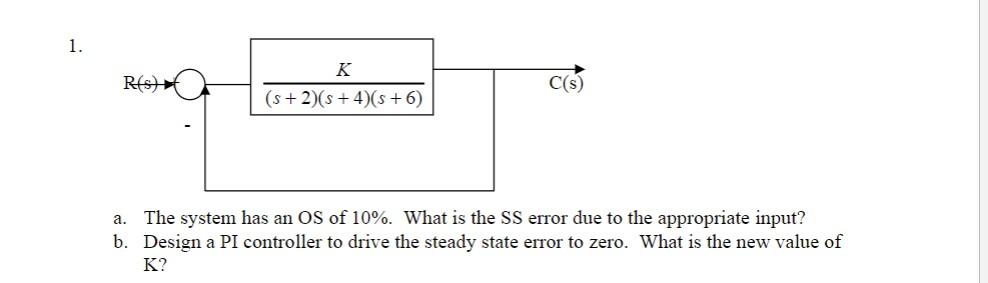

1 R S K S 2 S 4 S 6 C S A The System Has An Os Of 10 What Is The Ss Error Due To The Appropriate Input B D 1
1 R S K S 2 S 4 S 6 C S A The System Has An Os Of 10 What Is The Ss Error Due To The Appropriate Input B D 1 (20.33 KiB) Viewed 38 times
1. R(s) ► K (s+2)(s+4)(s+6) C(s) a. The system has an OS of 10%. What is the SS error due to the appropriate input? b. Design a PI controller to drive the steady state error to zero. What is the new value of K?
