pse Y 2 01:24:33 eBook Two vertical forces, each of magnitude P= 11 kN, are applied to a beam of the cross section shown

[answerhappygod]

Pse Y 2 01 24 33 Ebook Two Vertical Forces Each Of Magnitude P 11 Kn Are Applied To A Beam Of The Cross Section Shown 1 (57.68 KiB) Viewed 32 times

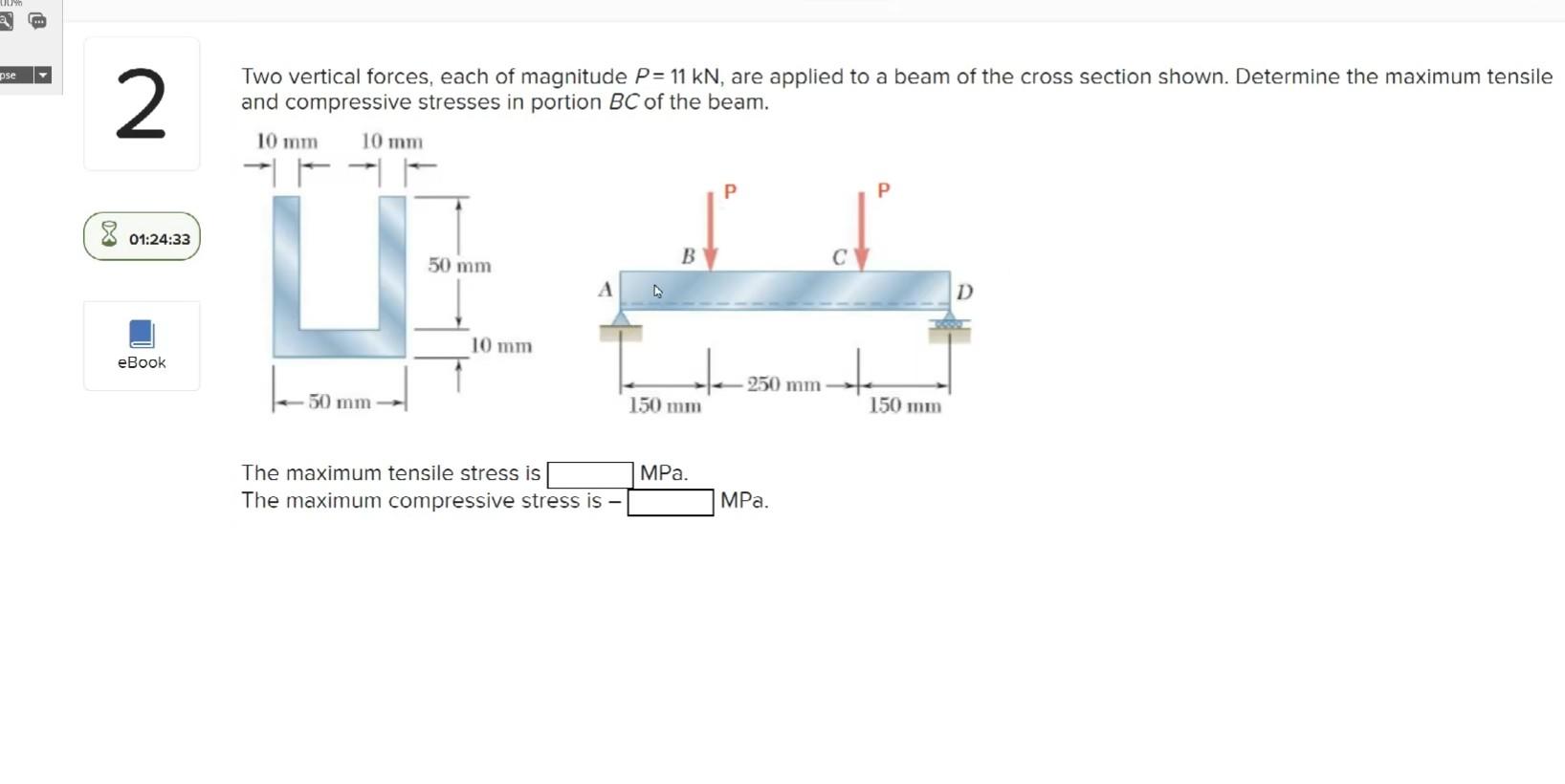

pse Y 2 01:24:33 eBook Two vertical forces, each of magnitude P= 11 kN, are applied to a beam of the cross section shown. Determine the maximum tensile and compressive stresses in portion BC of the beam. 10 mm 10 mm P B C DE 4 50 mm 10 mm 250 mm 50 mm The maximum tensile stress is The maximum compressive stress is - 150 mm MPa. MPa. P 150 mm D
