pse Y 3 Part 1 of 2 01:25:00 eBook Required information The couple M=122 N·m acts in a vertical plane and is applied to

[answerhappygod]

Pse Y 3 Part 1 Of 2 01 25 00 Ebook Required Information The Couple M 122 N M Acts In A Vertical Plane And Is Applied To 1 (65.82 KiB) Viewed 22 times

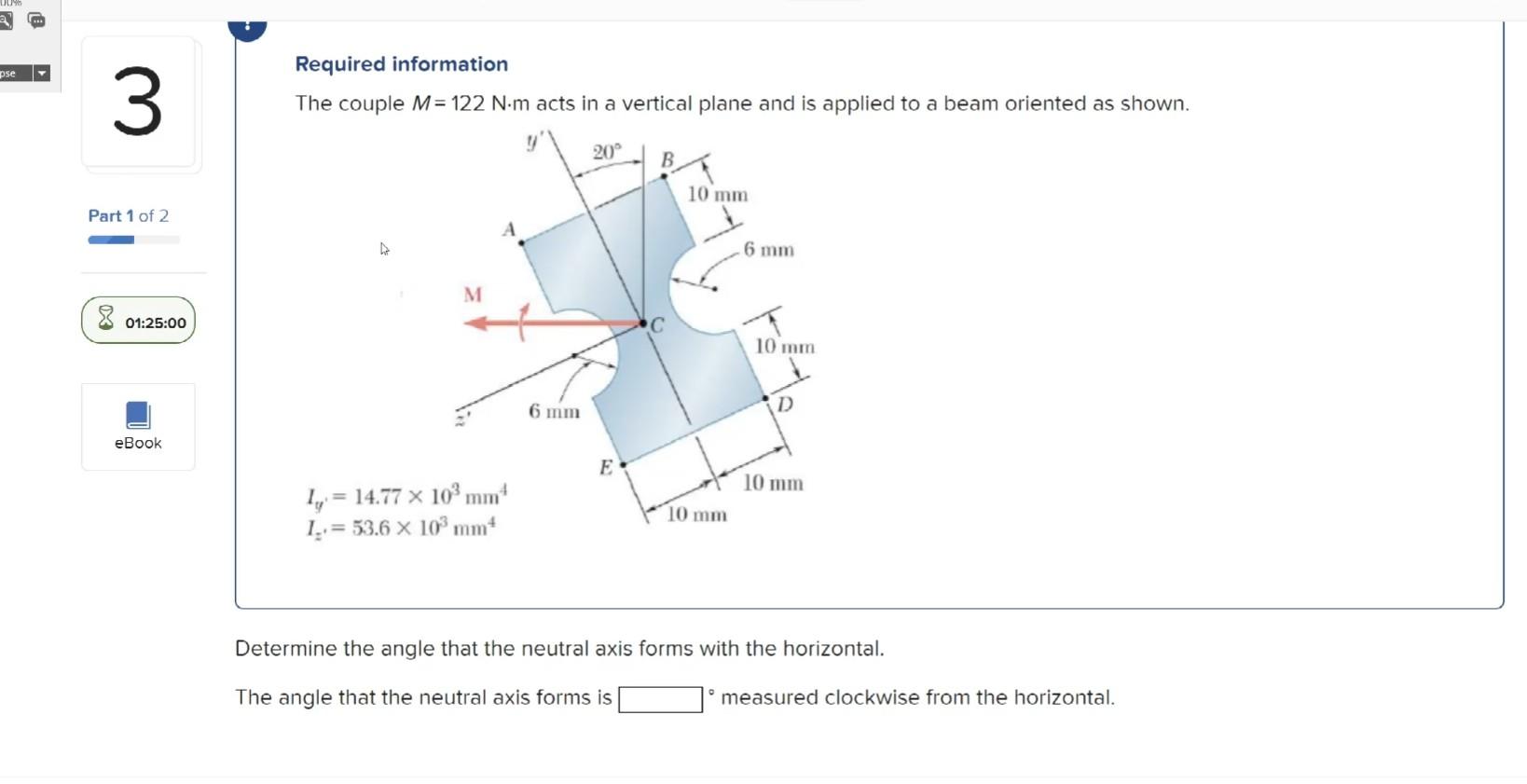

pse Y 3 Part 1 of 2 01:25:00 eBook Required information The couple M=122 N·m acts in a vertical plane and is applied to a beam oriented as shown. 4 M I= 14.77 x 10³ mm² I= 53.6 x 10³ mm² 6 mm 20° E B 10 mm 10 mm .6 mm 10 mm D 10 mm Determine the angle that the neutral axis forms with the horizontal. The angle that the neutral axis forms is measured clockwise from the horizontal.
