The couple M = 119 N·m acts in a vertical plane and is applied to a beam oriented as shown. 20° B M I= 14.77 x 10³ mm¹ 1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The couple M = 119 N·m acts in a vertical plane and is applied to a beam oriented as shown. 20° B M I= 14.77 x 10³ mm¹ 1

Post by answerhappygod »

The Couple M 119 N M Acts In A Vertical Plane And Is Applied To A Beam Oriented As Shown 20 B M I 14 77 X 10 Mm 1 1
The Couple M 119 N M Acts In A Vertical Plane And Is Applied To A Beam Oriented As Shown 20 B M I 14 77 X 10 Mm 1 1 (264.7 KiB) Viewed 25 times

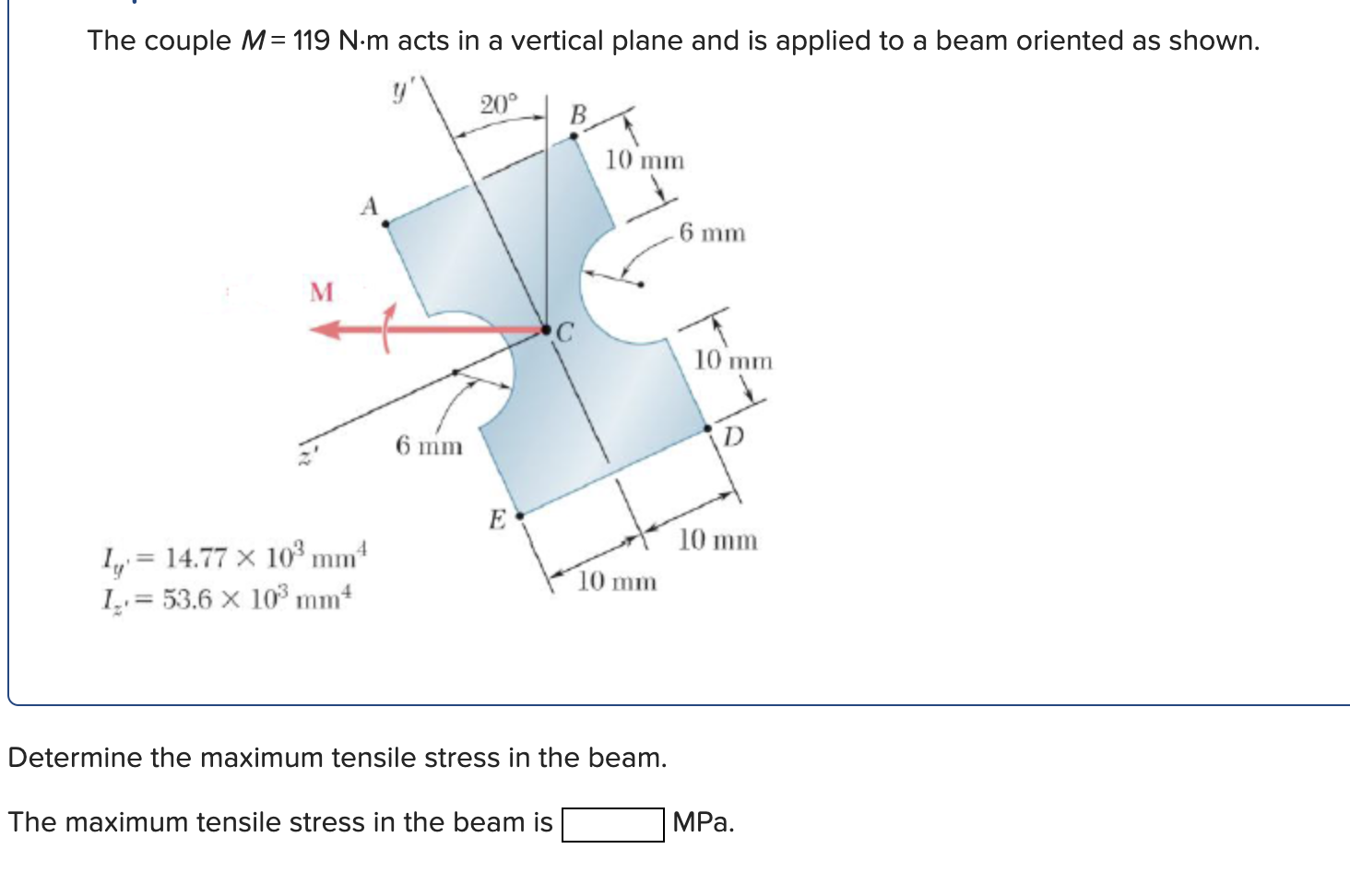

The couple M = 119 N·m acts in a vertical plane and is applied to a beam oriented as shown. 20° B M I= 14.77 x 10³ mm¹ 1₂ 53.6 x 10³ mm² 6 mm E 10 mm The maximum tensile stress in the beam is 10 mm Determine the maximum tensile stress in the beam. 6 mm 10 mm D 10 mm MPa.
