(b) Figure Q4 shows an electrohydraulic system. Explain the operation when the start button is momentarily pressed. SOLA

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

(b) Figure Q4 shows an electrohydraulic system. Explain the operation when the start button is momentarily pressed. SOLA

Post by answerhappygod »

B Figure Q4 Shows An Electrohydraulic System Explain The Operation When The Start Button Is Momentarily Pressed Sola 1
B Figure Q4 Shows An Electrohydraulic System Explain The Operation When The Start Button Is Momentarily Pressed Sola 1 (65.89 KiB) Viewed 16 times

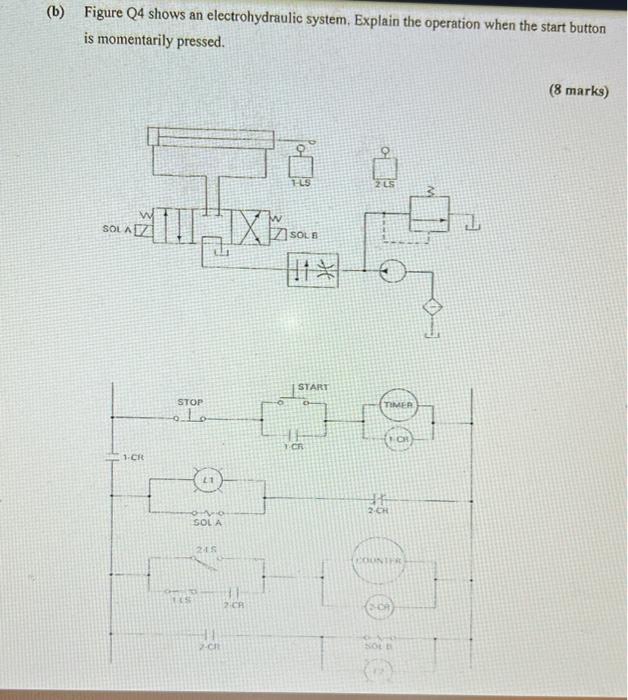

(b) Figure Q4 shows an electrohydraulic system. Explain the operation when the start button is momentarily pressed. SOLA 1-CR STOP مام ovo SOLA 245 X 2-CH 2CR R START CR 2 LS TIMER #H 2-CH COUNTER ⒸHC NOL (8 marks)
