In the structure shown, an 8-mm-diameter 12-mm-diameter pins pin is used at A, and are used at B and D. Knowing that the

[answerhappygod]

In The Structure Shown An 8 Mm Diameter 12 Mm Diameter Pins Pin Is Used At A And Are Used At B And D Knowing That The 1 (45.33 KiB) Viewed 33 times

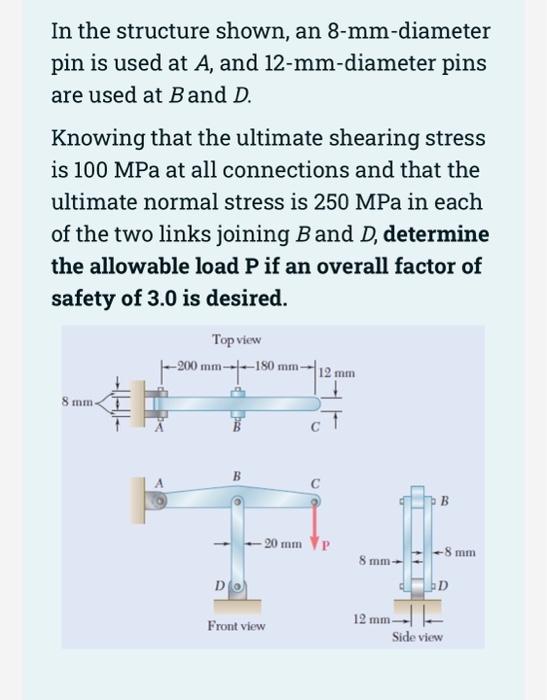

In the structure shown, an 8-mm-diameter 12-mm-diameter pins pin is used at A, and are used at B and D. Knowing that the ultimate shearing stress is 100 MPa at all connections and that the ultimate normal stress is 250 MPa in each of the two links joining B and D, determine the allowable load P if an overall factor of safety of 3.0 is desired. 8 mm- A Top view -200 mm- DO -180 mm- 12 mm -20 mm P Front view 8 mm- 12 mm- ** B D Side view mm
