The figure shows a compound epicicyclic train. Axis 1 is driven at 40 rpm in S.C.R. viewed From left to right and gear n
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The figure shows a compound epicicyclic train. Axis 1 is driven at 40 rpm in S.C.R. viewed From left to right and gear n

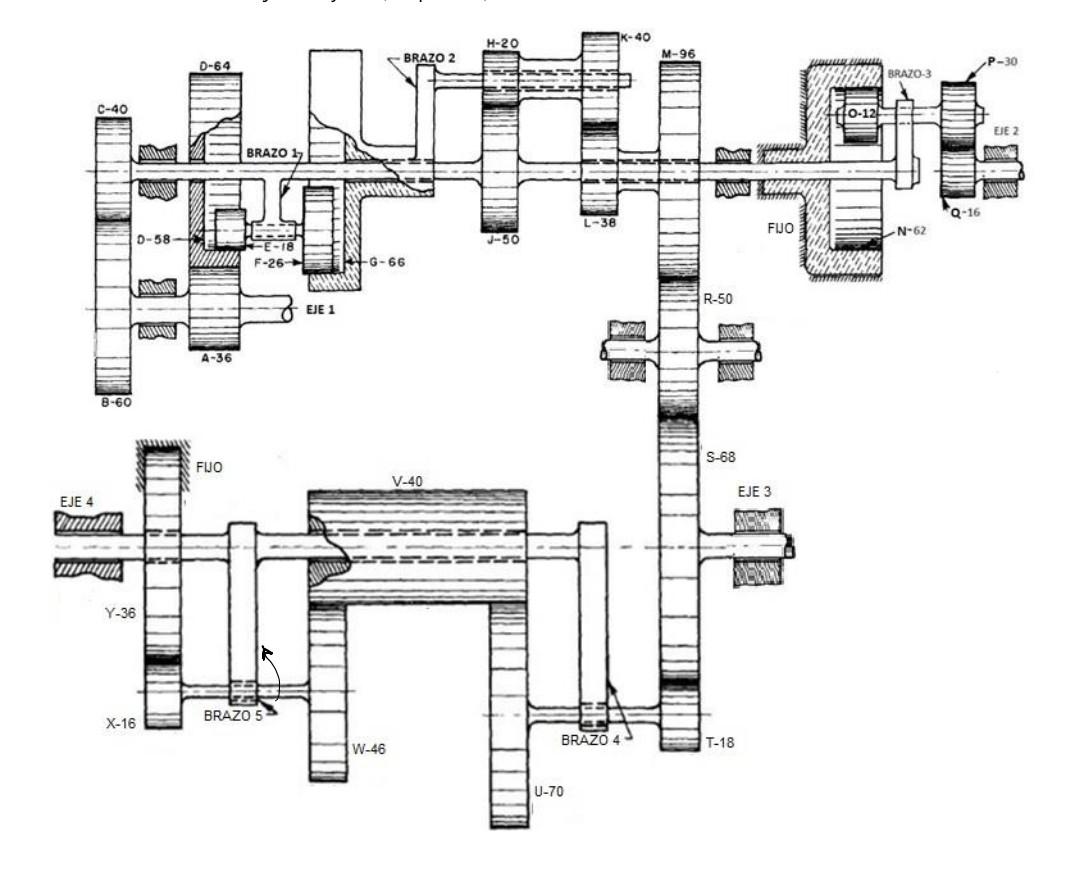

The figure shows a compound epicicyclic train. Axis 1 is driven at 40 rpm in S.C.R. viewedFrom left to right and gear n and and are fixed to the bench. Determine the address andAxis speed 2, 3 and 4.
C-40 8-60 EJE 4 humilh EXHAMIAYAAN X-16 D-58- Y-36 D-64 A-36 FUO BRAZO 17 F-26- BRAZO 5 EJE 1 BRAZO 2 -G-66 W-46 V-40 H-20 J-50 L-38 BRAZO 4 U-70 K-40 M-96 SAMAS R-50 S-68 T-18 FIJO EJE 3 BRAZO-3 N-62 Q-16 P-30 EJE 2
C-40 8-60 EJE 4 humilh EXHAMIAYAAN X-16 D-58- Y-36 D-64 A-36 FUO BRAZO 17 F-26- BRAZO 5 EJE 1 BRAZO 2 -G-66 W-46 V-40 H-20 J-50 L-38 BRAZO 4 U-70 K-40 M-96 SAMAS R-50 S-68 T-18 FIJO EJE 3 BRAZO-3 N-62 Q-16 P-30 EJE 2
