Q8. The design specifications of a 2 m long solid circular transmission shaft require that the angle of twist of the sha

Post by answerhappygod »

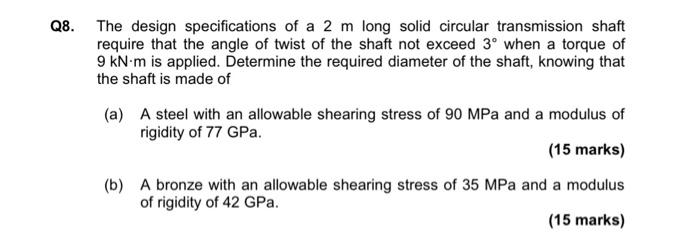

Q8 The Design Specifications Of A 2 M Long Solid Circular Transmission Shaft Require That The Angle Of Twist Of The Sha 1
Q8 The Design Specifications Of A 2 M Long Solid Circular Transmission Shaft Require That The Angle Of Twist Of The Sha 1 (25.45 KiB) Viewed 25 times
Q8. The design specifications of a 2 m long solid circular transmission shaft require that the angle of twist of the shaft not exceed 3° when a torque of 9 kN-m is applied. Determine the required diameter of the shaft, knowing that the shaft is made of (a) A steel with an allowable shearing stress of 90 MPa and a modulus of rigidity of 77 GPa. (15 marks) (b) A bronze with an allowable shearing stress of 35 MPa and a modulus of rigidity of 42 GPa. (15 marks)
