Q7. Consider the rigid bar ABC shown in Figure Q7. The bar is supported by two links, AD and BE, of uniform 37.5x6 mm re

Post by answerhappygod »

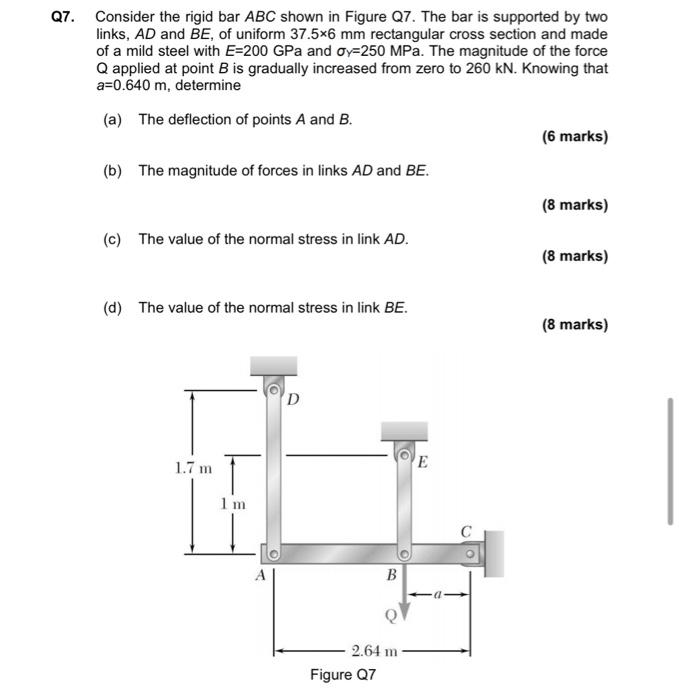

Q7 Consider The Rigid Bar Abc Shown In Figure Q7 The Bar Is Supported By Two Links Ad And Be Of Uniform 37 5x6 Mm Re 1
Q7 Consider The Rigid Bar Abc Shown In Figure Q7 The Bar Is Supported By Two Links Ad And Be Of Uniform 37 5x6 Mm Re 1 (40.39 KiB) Viewed 28 times
Q7. Consider the rigid bar ABC shown in Figure Q7. The bar is supported by two links, AD and BE, of uniform 37.5x6 mm rectangular cross section and made of a mild steel with E-200 GPa and oy-250 MPa. The magnitude of the force Q applied at point B is gradually increased from zero to 260 kN. Knowing that a=0.640 m, determine (a) The deflection of points A and B. (b) The magnitude of forces in links AD and BE. (c) The value of the normal stress in link AD. (d) The value of the normal stress in link BE. 1.7 m T 1m A D B 2.64 m Figure Q7 E (6 marks) (8 marks) (8 marks) (8 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
