3. Determine the equilibrium/steady state temperature distribution for a one-dimensional rod of length "L", assuming the

[answerhappygod]

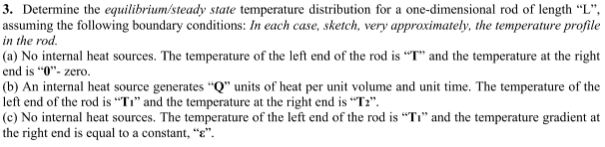

3 Determine The Equilibrium Steady State Temperature Distribution For A One Dimensional Rod Of Length L Assuming The 1 (48.39 KiB) Viewed 32 times

3. Determine the equilibrium/steady state temperature distribution for a one-dimensional rod of length "L", assuming the following boundary conditions: In each case, sketch, very approximately, the temperature profile in the rod. (a) No internal heat sources. The temperature of the left end of the rod is "T" and the temperature at the right end is "0"- zero. (b) An internal heat source generates "Q" units of heat per unit volume and unit time. The temperature of the left end of the rod is "TI" and the temperature at the right end is "T?". (c) No internal heat sources. The temperature of the left end of the rod is "TI" and the temperature gradient at the right end is equal to a constant, "".
