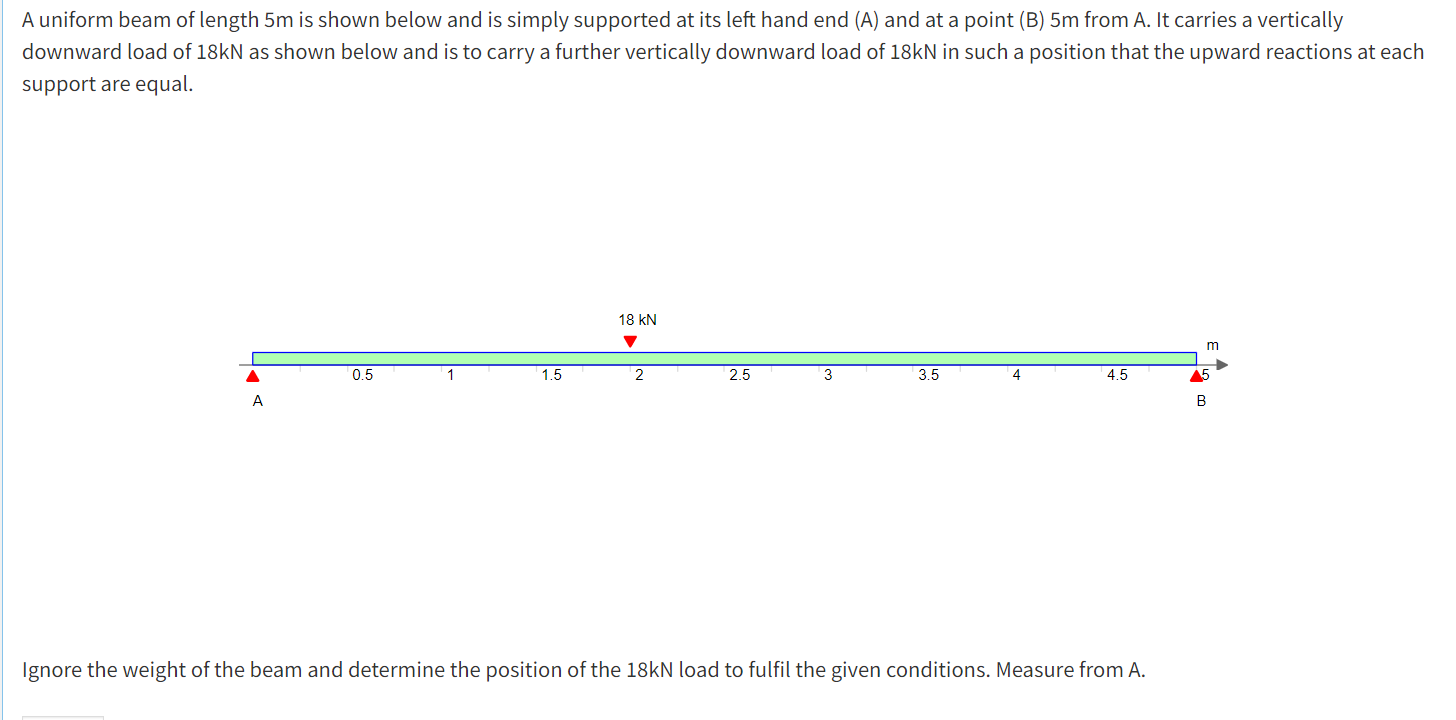

- A Uniform Beam Of Length 5m Is Shown Below And Is Simply Supported At Its Left Hand End A And At A Point B 5m From A 1 (42.34 KiB) Viewed 40 times
A uniform beam of length 5m is shown below and is simply supported at its left hand end (A) and at a point (B) 5m from A
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A uniform beam of length 5m is shown below and is simply supported at its left hand end (A) and at a point (B) 5m from A
A uniform beam of length 5m is shown below and is simply supported at its left hand end (A) and at a point (B) 5m from A. It carries a vertically downward load of 18kN as shown below and is to carry a further vertically downward load of 18kN in such a position that the upward reactions at each support are equal. H◄ A 0.5 1 1.5 18 KN ▼ 2 2.5 3 3.5 4 4.5 Ignore the weight of the beam and determine the position of the 18kN load to fulfil the given conditions. Measure from A. 5 B
