Question 10 (14 points) For the truss shown below, find the ABSOLUTE value (in mm) of the unconstrained displacement. Gi

Post by answerhappygod »

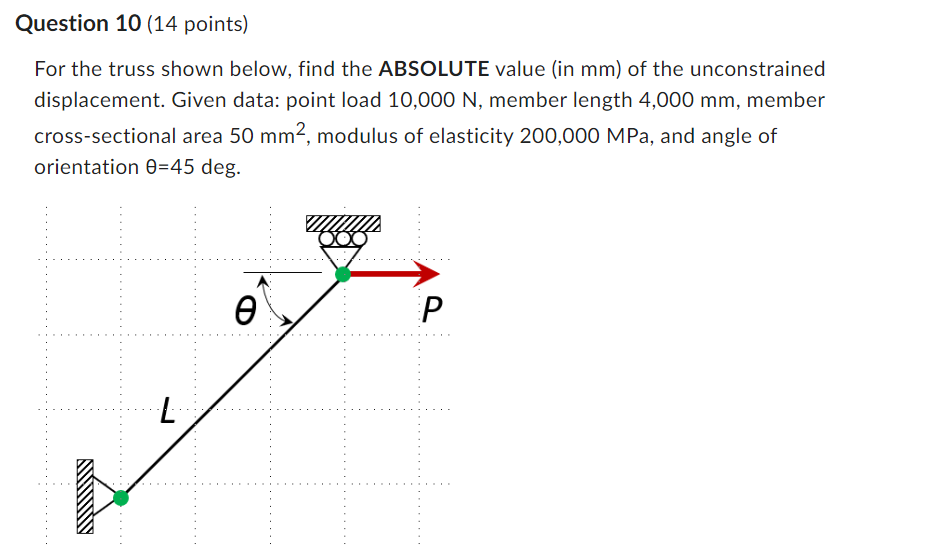

Question 10 14 Points For The Truss Shown Below Find The Absolute Value In Mm Of The Unconstrained Displacement Gi 1
Question 10 14 Points For The Truss Shown Below Find The Absolute Value In Mm Of The Unconstrained Displacement Gi 1 (50.59 KiB) Viewed 14 times
Question 10 (14 points) For the truss shown below, find the ABSOLUTE value (in mm) of the unconstrained displacement. Given data: point load 10,000 N, member length 4,000 mm, member cross-sectional area 50 mm², modulus of elasticity 200,000 MPa, and angle of orientation 0-45 deg. ****** Ө P
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
