T (Nm) 700 500 300 100 0 0.1 0.4 0.5 0.8 0.9 1.2 1.3 t (s) The Figure shows a turning moment diagram of a waterwheel tur

[answerhappygod]

T Nm 700 500 300 100 0 0 1 0 4 0 5 0 8 0 9 1 2 1 3 T S The Figure Shows A Turning Moment Diagram Of A Waterwheel Tur 1 (205.62 KiB) Viewed 16 times

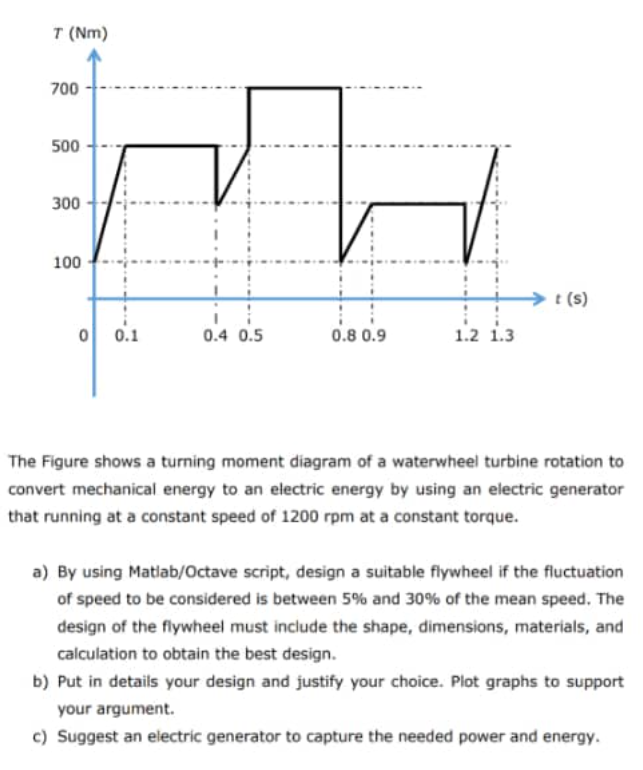

T (Nm) 700 500 300 100 0 0.1 0.4 0.5 0.8 0.9 1.2 1.3 t (s) The Figure shows a turning moment diagram of a waterwheel turbine rotation to convert mechanical energy to an electric energy by using an electric generator that running at a constant speed of 1200 rpm at a constant torque. a) By using Matlab/Octave script, design a suitable flywheel if the fluctuation of speed to be considered is between 5% and 30% of the mean speed. The design of the flywheel must include the shape, dimensions, materials, and calculation to obtain the best design. b) Put in details your design and justify your choice. Plot graphs to support your argument. c) Suggest an electric generator to capture the needed power and energy.
