Determine the maximum allowable length L for the column AB shown below. It carries a centric load P = 25 kips. Cables BC

Post by answerhappygod »

Determine The Maximum Allowable Length L For The Column Ab Shown Below It Carries A Centric Load P 25 Kips Cables Bc 1
Determine The Maximum Allowable Length L For The Column Ab Shown Below It Carries A Centric Load P 25 Kips Cables Bc 1 (67.26 KiB) Viewed 32 times

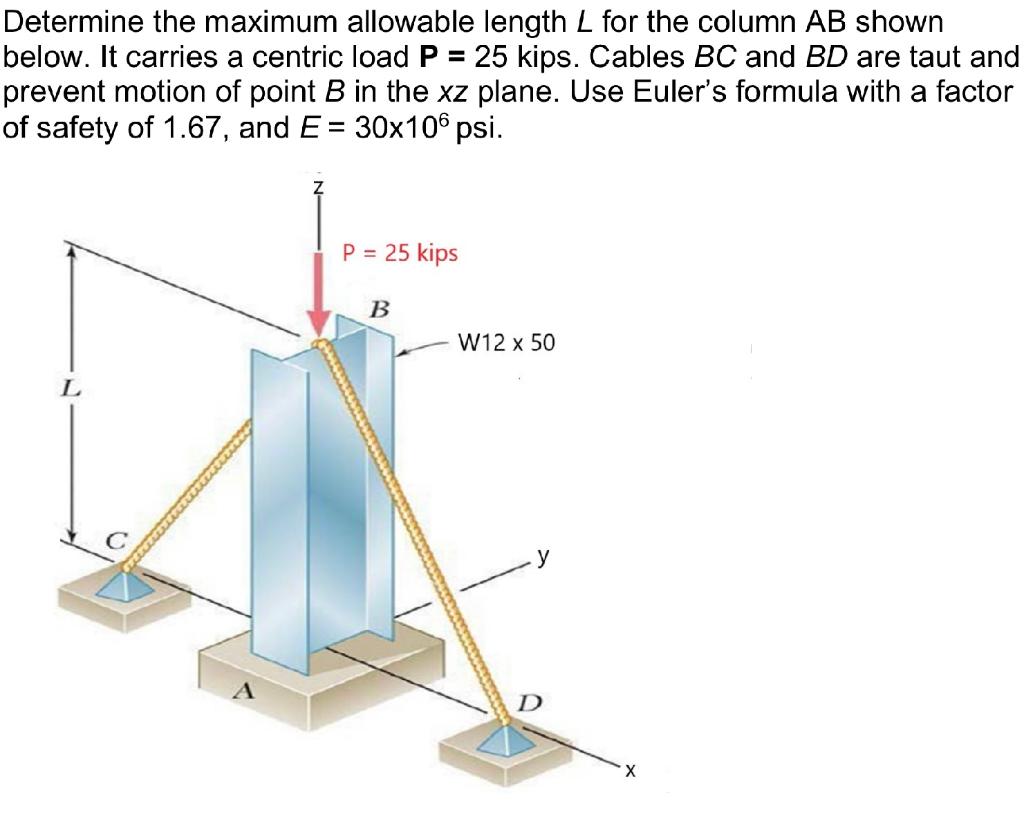

Determine the maximum allowable length L for the column AB shown below. It carries a centric load P = 25 kips. Cables BC and BD are taut and prevent motion of point B in the xz plane. Use Euler's formula with a factor of safety of 1.67, and E= 30x106 psi. Z P = 25 kips B W12 x 50 y D X
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
