You are investigating electrical testing circuits and find that two voltages V1 = A Cos (30πt) and V2 = B Sin (30nt + +)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

You are investigating electrical testing circuits and find that two voltages V1 = A Cos (30πt) and V2 = B Sin (30nt + +)

Post by answerhappygod »

1
1 (336.34 KiB) Viewed 29 times
A=50 B=60

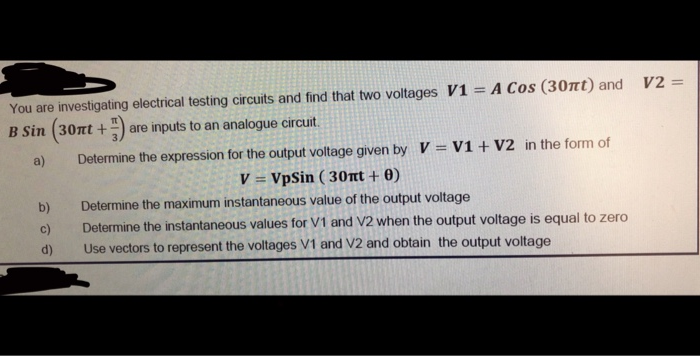

You are investigating electrical testing circuits and find that two voltages V1 = A Cos (30πt) and V2 = B Sin (30nt + +)e are inputs to an analogue circuit. a) Determine the expression for the output voltage given by V = V1 + V2 in the form of V = VpSin (30nt + 0) Determine the maximum instantaneous value of the output voltage Determine the instantaneous values for V1 and V2 when the output voltage is equal to zero Use vectors to represent the voltages V1 and V2 and obtain the output voltage b) c) d)
