Question 9: Water (p = 1000 kg/m³; kinematic (Pw viscosity, v = 1.12 x 10-6 m²/s) flows from a large reservoir at the ra

[answerhappygod]

Question 9 Water P 1000 Kg M Kinematic Pw Viscosity V 1 12 X 10 6 M S Flows From A Large Reservoir At The Ra 1 (106.48 KiB) Viewed 38 times

Question 9 Water P 1000 Kg M Kinematic Pw Viscosity V 1 12 X 10 6 M S Flows From A Large Reservoir At The Ra 2 (30.78 KiB) Viewed 38 times

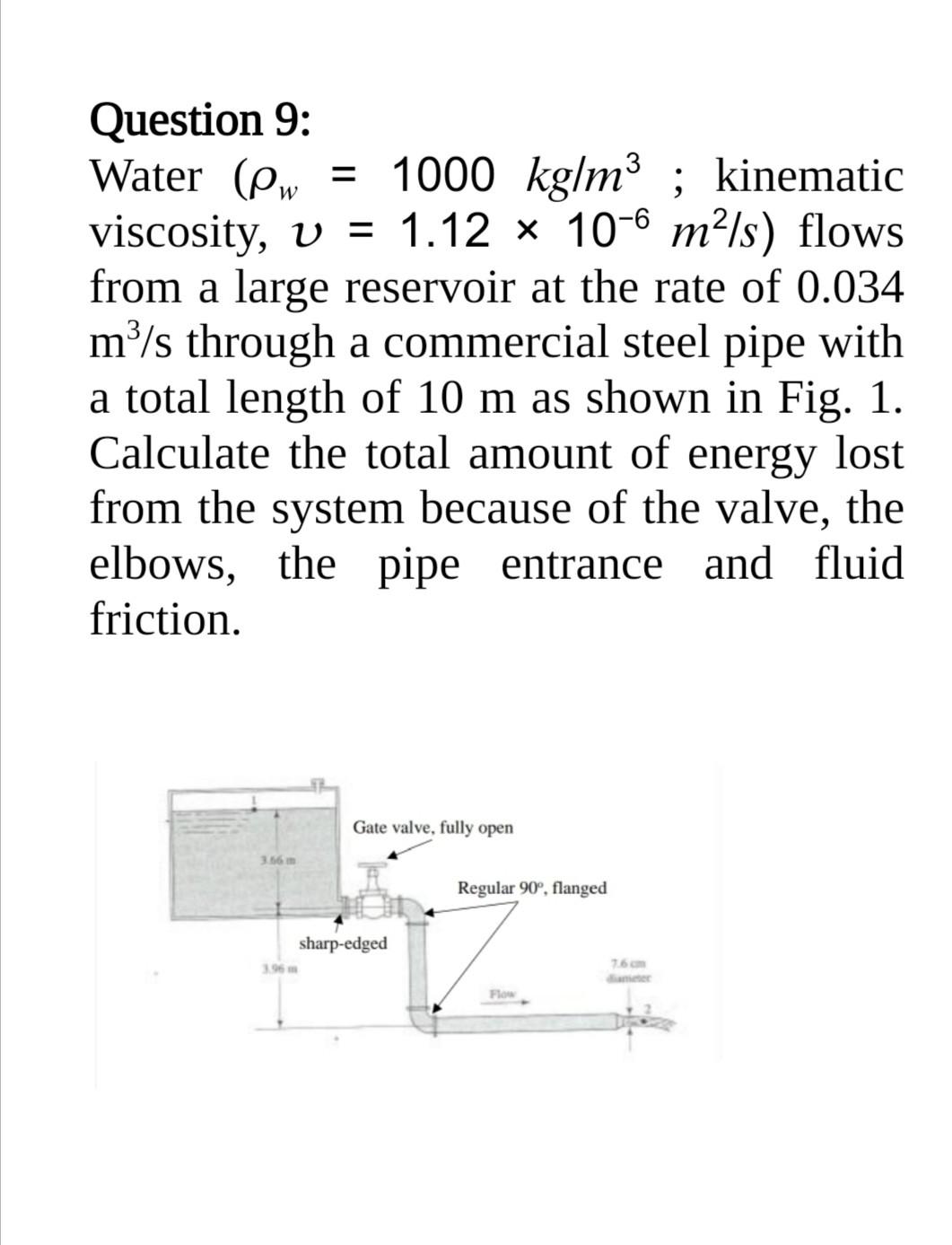

Question 9: Water (p = 1000 kg/m³; kinematic (Pw viscosity, v = 1.12 x 10-6 m²/s) flows from a large reservoir at the rate of 0.034 m³/s through a commercial steel pipe with a total length of 10 m as shown in Fig. 1. Calculate the total amount of energy lost from the system because of the valve, the elbows, the pipe entrance and fluid friction. 3.56 m Gate valve, fully open sharp-edged Regular 90°, flanged 7.6 cm diameter
9.86 3967319 3.56 m Gate valve, fully open sharp-edged Regular 90°, flanged Flow 7-6cm diameter
