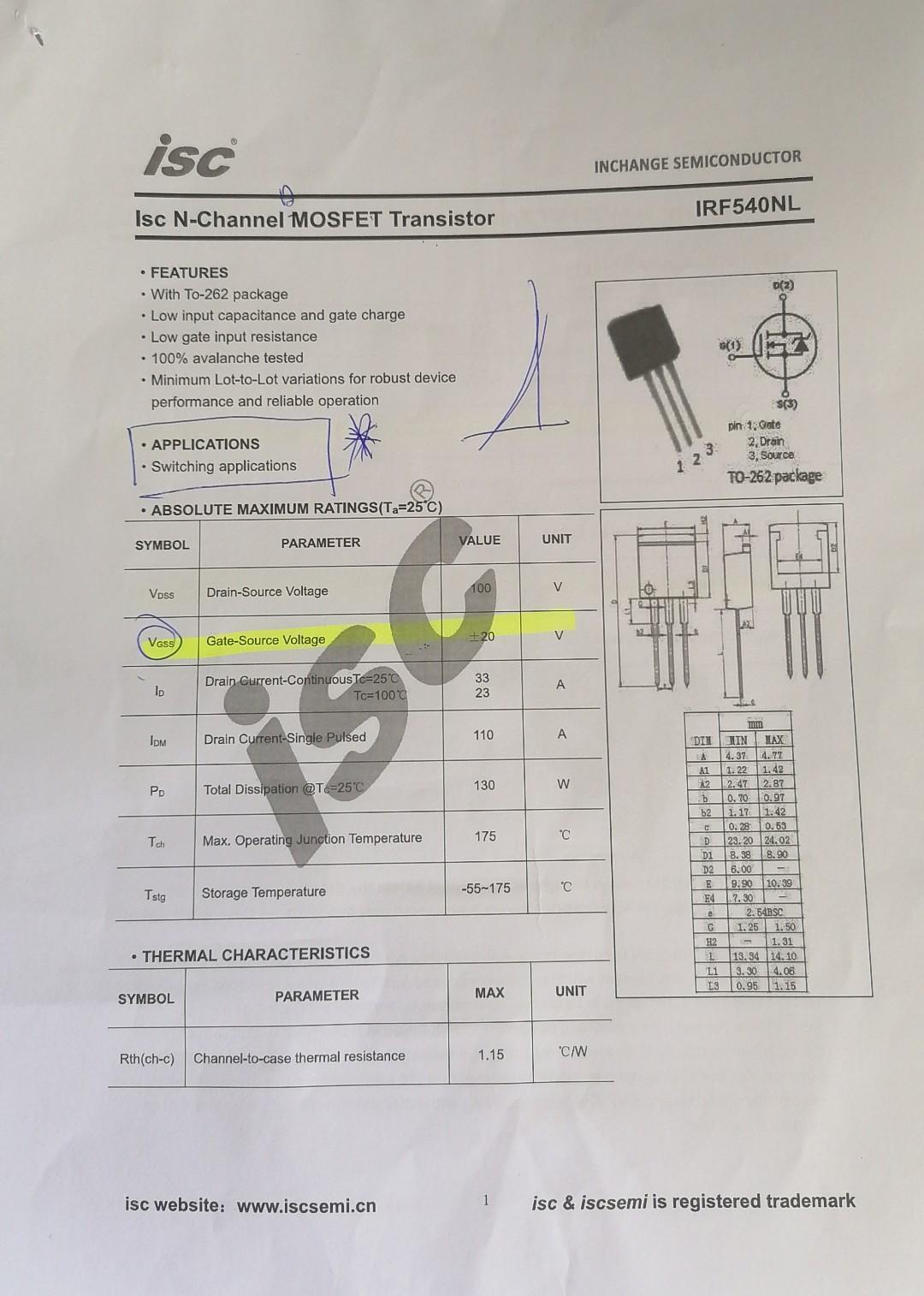

isc Isc N-Channel MOSFET Transistor • FEATURES • With To-262 package • Low input capacitance and gate charge • Low gate input resistance • 100% avalanche tested . Minimum Lot-to-Lot variations for robust device performance and reliable operation • APPLICATIONS Switching applications • ABSOLUTE MAXIMUM RATINGS(Ta=25°C) SYMBOL Voss VGSS ID IDM PD Tch Tstg SYMBOL PARAMETER Rth(ch-c) Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous Tc-250 TC-100°C SC Drain Current-Single Pulsed Total Dissipation @Tc-25°C Max. Operating Junction Temperature Storage Temperature • THERMAL CHARACTERISTICS PARAMETER Channel-to-case thermal resistance. VALUE isc website: www.iscsemi.cn 100 +20 33 23 110 130 175 -55-175 MAX 1.15 UNIT V V A A W C 'C UNIT 'C/W INCHANGE SEMICONDUCTOR IRF540NL 123 2410 DI C D 0(1) D1 D2 E E4 D(2) TRIO MIN MAX 4.37 4.77 A1 1.22 1.42 A2 2.47 2.87 b 0.70 0.97 62 1.17 1.42 0.28 0.53 23.20 24.02 8.38 8.90 6,00 $(3) pin 1, Gate 2, Drain 3, Source TO-262 package 10.39 9.90 7.30 2.548SC B G 1.25 1.50 H2 UPPT 1.31 L 13.34 14.10 11 3.30 4.06 13 0.95 1.15 1 isc & iscsemi is registered trademark

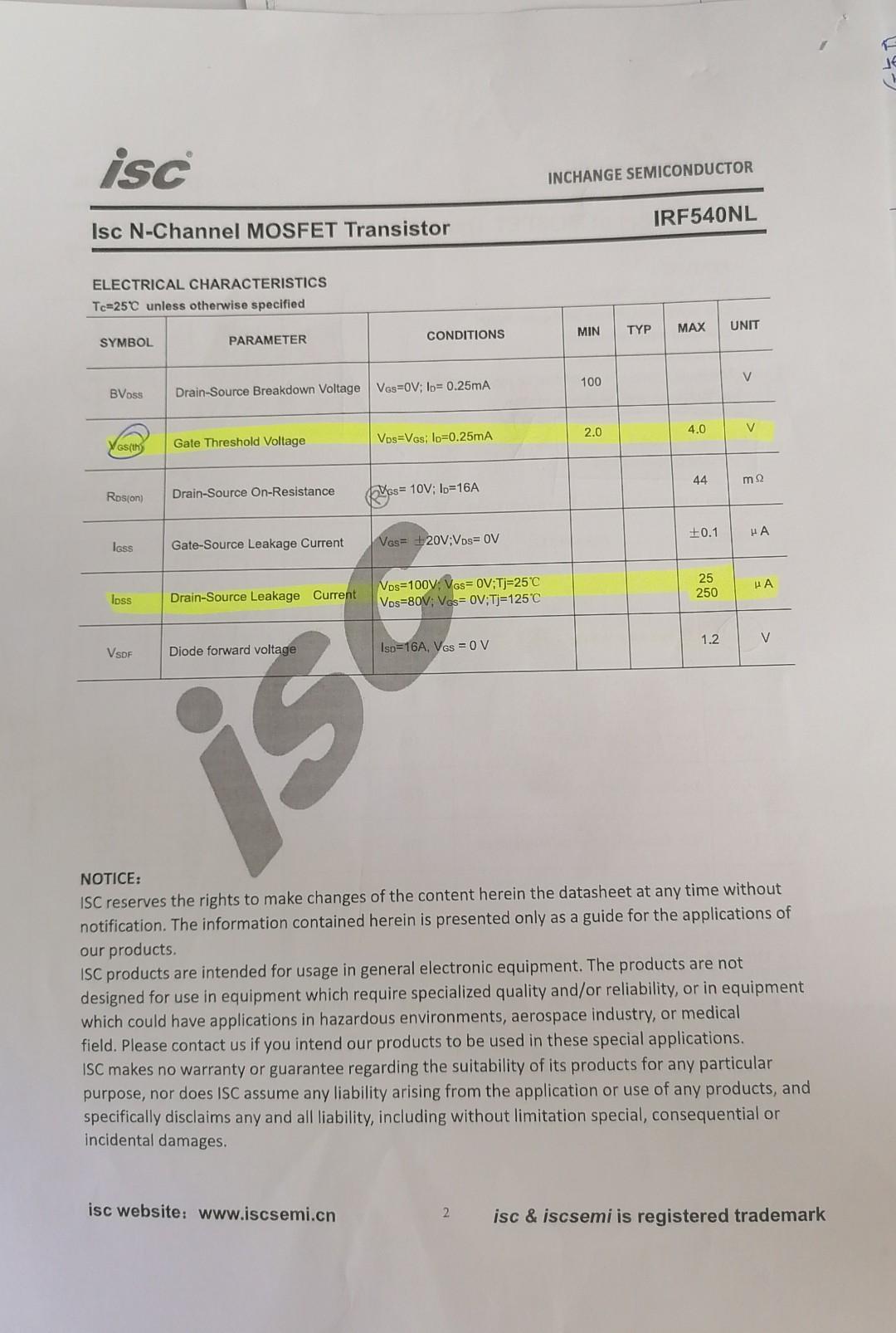

isc Isc N-Channel MOSFET Transistor ELECTRICAL CHARACTERISTICS Tc-25C unless otherwise specified SYMBOL BVoss YGS(th Ros(on) loss loss VSDF PARAMETER Drain-Source Breakdown Voltage Vos=0V; lo= 0.25mA Gate Threshold Voltage Drain-Source On-Resistance Gate-Source Leakage Current Drain-Source Leakage Current Diode forward voltage CONDITIONS VDs Ves; ID=0.25mA isc website: www.iscsemi.cn Vos 10V; ID-16A is Vas 20V;VDs= OV VDs 100V; VGS=OV;Tj=25°C Vos 80V; Vos= OV; Tj=125°C Iso=16A, VGs = 0 V INCHANGE SEMICONDUCTOR MIN 100 2.0 TYP IRF540NL MAX 4.0 44 ±0.1 25 250 1.2 UNIT V V 3 m22 HA HA V NOTICE: ISC reserves the rights to make changes of the content herein the datasheet at any time without notification. The information contained herein is presented only as a guide for the applications of our products. ISC products are intended for usage in general electronic equipment. The products are not designed for use in equipment which require specialized quality and/or reliability, or in equipment which could have applications in hazardous environments, aerospace industry, or medical field. Please contact us if you intend our products to be used in these special applications. ISC makes no warranty or guarantee regarding the suitability of its products for any particular purpose, nor does ISC assume any liability arising from the application or use of any products, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. 2 isc & iscsemi is registered trademark Je
