4 For The Given Jk Flip Flop And Its Input J And K In The Figure Plot The Output Very Neatly And Cleanly With Proper S 1 (24.45 KiB) Viewed 30 times
Plot the output of JK flip flop

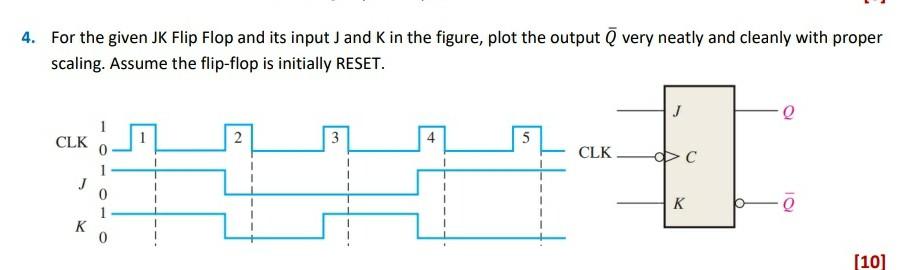

4. For the given JK Flip Flop and its input J and K in the figure, plot the output very neatly and cleanly with proper scaling. Assume the flip-flop is initially RESET. CLK J K 1 0 2 3 5 CLK J C K Q Q [10]
