QUESTION EIGHT A. Define the term "OP-AMP" B. Explain the meaning of the following terms as applied to OP-Amps; i. Casca

Post by answerhappygod »

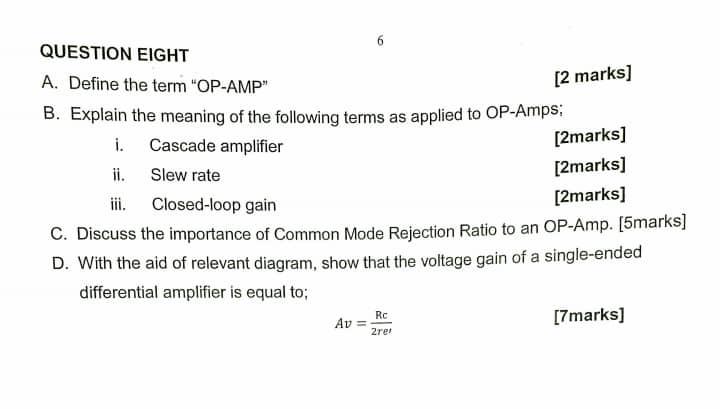

Question Eight A Define The Term Op Amp B Explain The Meaning Of The Following Terms As Applied To Op Amps I Casca 1
Question Eight A Define The Term Op Amp B Explain The Meaning Of The Following Terms As Applied To Op Amps I Casca 1 (26.4 KiB) Viewed 28 times
QUESTION EIGHT A. Define the term "OP-AMP" B. Explain the meaning of the following terms as applied to OP-Amps; i. Cascade amplifier Av [2 marks] Slew rate iii. Closed-loop gain C. Discuss the importance of Common Mode Rejection Ratio to an OP-Amp. [5marks] D. With the aid of relevant diagram, show that the voltage gain of a single-ended differential amplifier is equal to; Rc 2re [2marks] [2marks] [2marks] [7marks]
