(b) Determine total impedance (Zr), total current (I), and voltage value (VRI, VII, VC1) based on the series circuit sho

Post by answerhappygod »

B Determine Total Impedance Zr Total Current I And Voltage Value Vri Vii Vc1 Based On The Series Circuit Sho 1
B Determine Total Impedance Zr Total Current I And Voltage Value Vri Vii Vc1 Based On The Series Circuit Sho 1 (28.33 KiB) Viewed 20 times

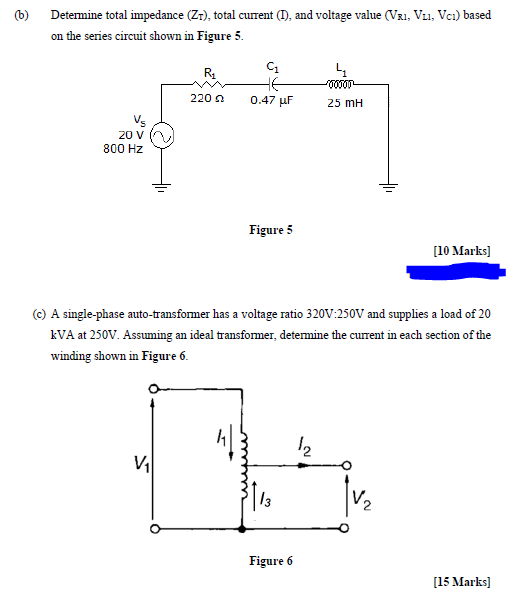

(b) Determine total impedance (Zr), total current (I), and voltage value (VRI, VII, VC1) based on the series circuit shown in Figure 5. Vs 20 V 800 Hz R₁ V₁ 220 C₁ 0.47 μF Figure 5 (c) A single-phase auto-transformer has a voltage ratio 320V:250V and supplies a load of 20 kVA at 250V. Assuming an ideal transformer, determine the current in each section of the winding shown in Figure 6. Figure 6 4 -00000 25 mH 12 [10 Marks] [15 Marks]
