An AC/AC converter consisting of two SCRs connected in parallel is shown in Fig. 1. The AC source has a voltage of 240 V

Post by answerhappygod »

An Ac Ac Converter Consisting Of Two Scrs Connected In Parallel Is Shown In Fig 1 The Ac Source Has A Voltage Of 240 V 1
An Ac Ac Converter Consisting Of Two Scrs Connected In Parallel Is Shown In Fig 1 The Ac Source Has A Voltage Of 240 V 1 (35.71 KiB) Viewed 40 times

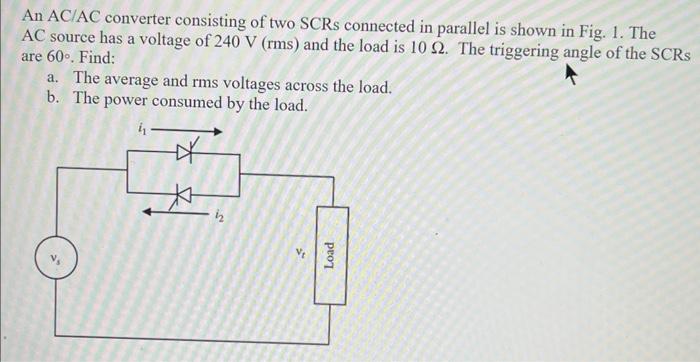

An AC/AC converter consisting of two SCRs connected in parallel is shown in Fig. 1. The AC source has a voltage of 240 V (rms) and the load is 10 92. The triggering angle of the SCRS are 60°. Find: a. The average and rms voltages across the load. b. The power consumed by the load.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
