7. (3 pts) For the circuit shown, a. transform the circuit to the frequency domain if the two voltage sources are as fol

Post by answerhappygod »

7 3 Pts For The Circuit Shown A Transform The Circuit To The Frequency Domain If The Two Voltage Sources Are As Fol 1
7 3 Pts For The Circuit Shown A Transform The Circuit To The Frequency Domain If The Two Voltage Sources Are As Fol 1 (74.38 KiB) Viewed 38 times

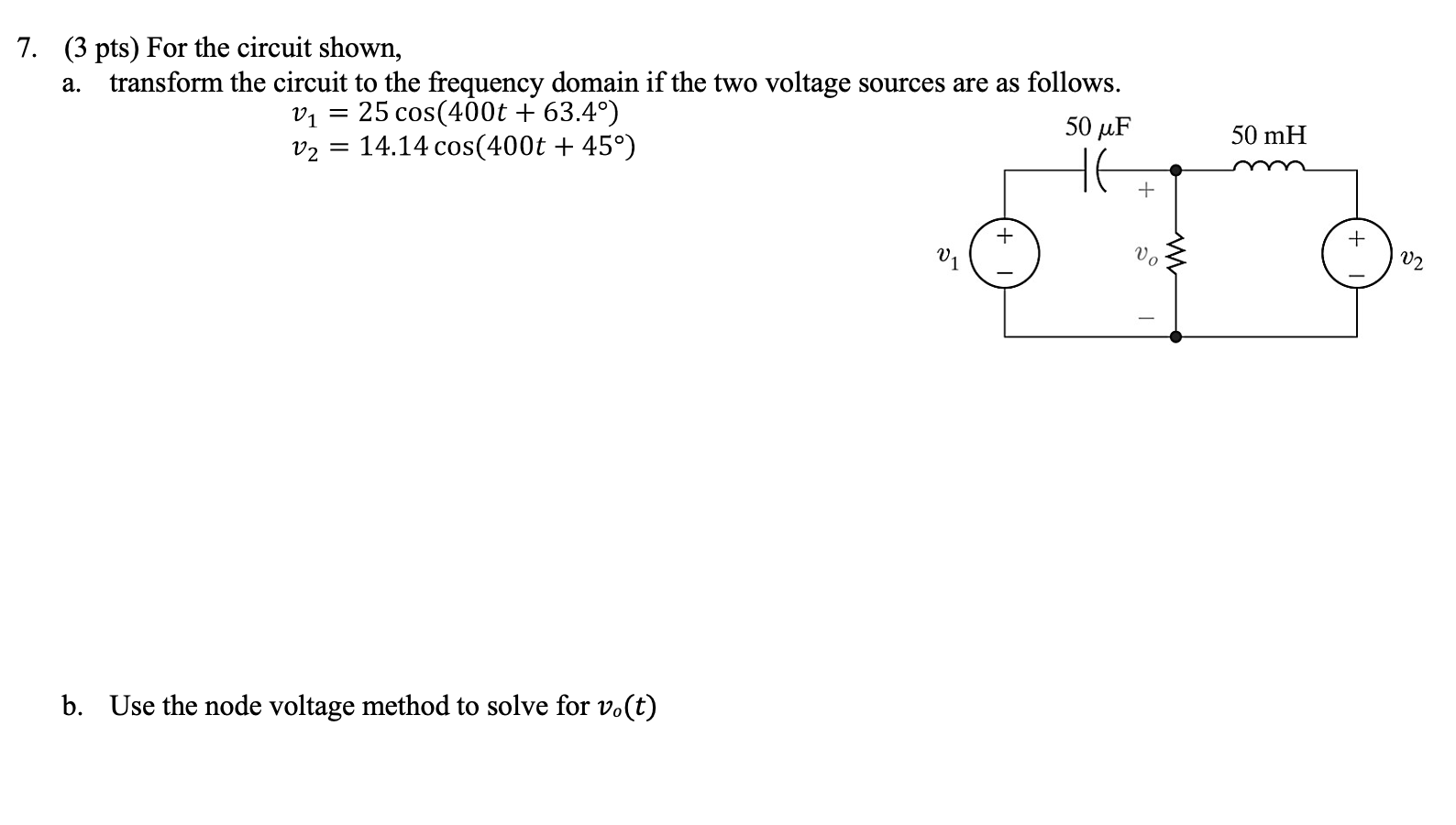

7. (3 pts) For the circuit shown, a. transform the circuit to the frequency domain if the two voltage sources are as follows. 50 μF 25 cos(400t + 63.4°) 14.14 cos(400t + 45°) V1 = V2 = b. Use the node voltage method to solve for vo(t) + Vo 50 mH + V2
