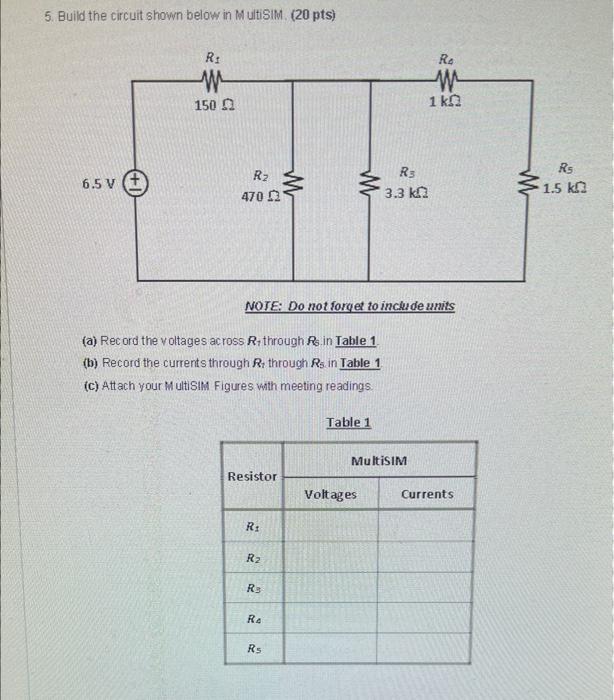

5. Build the circuit shown below in MultiSIM. (20 pts) 6.5 V R₁ 150 R₂ 470 (a) Record the voltages across R through Rs.i

[answerhappygod]

5 Build The Circuit Shown Below In Multisim 20 Pts 6 5 V R 150 R 470 A Record The Voltages Across R Through Rs I 1 (63.49 KiB) Viewed 40 times

5. Build the circuit shown below in MultiSIM. (20 pts) 6.5 V R₁ 150 R₂ 470 (a) Record the voltages across R through Rs.in Table 1. (b) Record the currents through R, through Rs in Table 1 (c) Attach your MultiSIM Figures with meeting readings. Resistor NOTE: Do not forget to include units R₂ R₂ 2 R3 Ra Rs Table 1 R3 3.3 k Multisi Voltages Re M 1 k Currents Rs 1.5 k
