For the linear transformer circuit shown below, find the mesh currents 1₁ and 12, the complex power for the voltage sour

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the linear transformer circuit shown below, find the mesh currents 1₁ and 12, the complex power for the voltage sour

Post by answerhappygod »

For The Linear Transformer Circuit Shown Below Find The Mesh Currents 1 And 12 The Complex Power For The Voltage Sour 1
For The Linear Transformer Circuit Shown Below Find The Mesh Currents 1 And 12 The Complex Power For The Voltage Sour 1 (152.8 KiB) Viewed 37 times

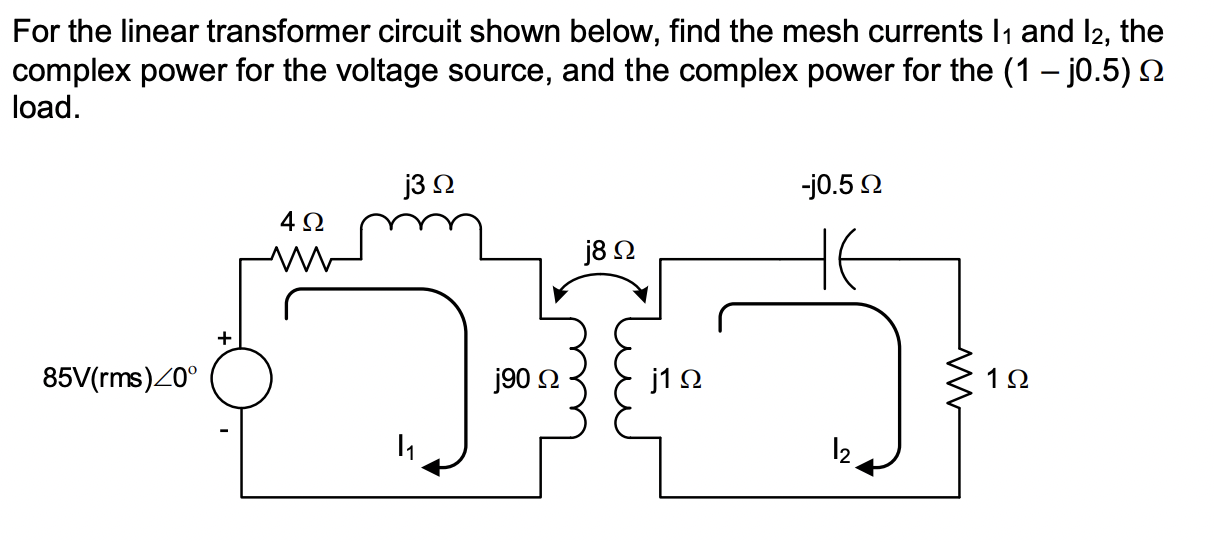

For the linear transformer circuit shown below, find the mesh currents 1₁ and 12, the complex power for the voltage source, and the complex power for the (1 – j0.5) Ω Ioad. 85V(rms)<0° 4Ω j3 Ω j90 Ω j8 Ω j1Ω -j0.5 Ω HE 12 1Ω
