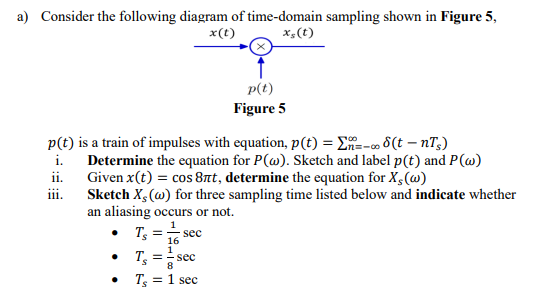

a) Consider the following diagram of time-domain sampling shown in Figure 5, x(t) xs (t) p(t) is a train of impulses wit

[answerhappygod]

A Consider The Following Diagram Of Time Domain Sampling Shown In Figure 5 X T Xs T P T Is A Train Of Impulses Wit 1 (27.61 KiB) Viewed 34 times

a) Consider the following diagram of time-domain sampling shown in Figure 5, x(t) xs (t) p(t) is a train of impulses with equation, p(t) ==- 8(t-nTs) i. Determine the equation for P(w). Sketch and label p(t) and P (w) ii. Given x(t) = cos 8πt, determine the equation for X, (w) 111. Sketch X, (w) for three sampling time listed below and indicate whether an aliasing occurs or not. sec ● p(t) Figure 5 Ts= 16 1 T₁ = = sec Ts = 1 sec
