Can someone please help?!!!

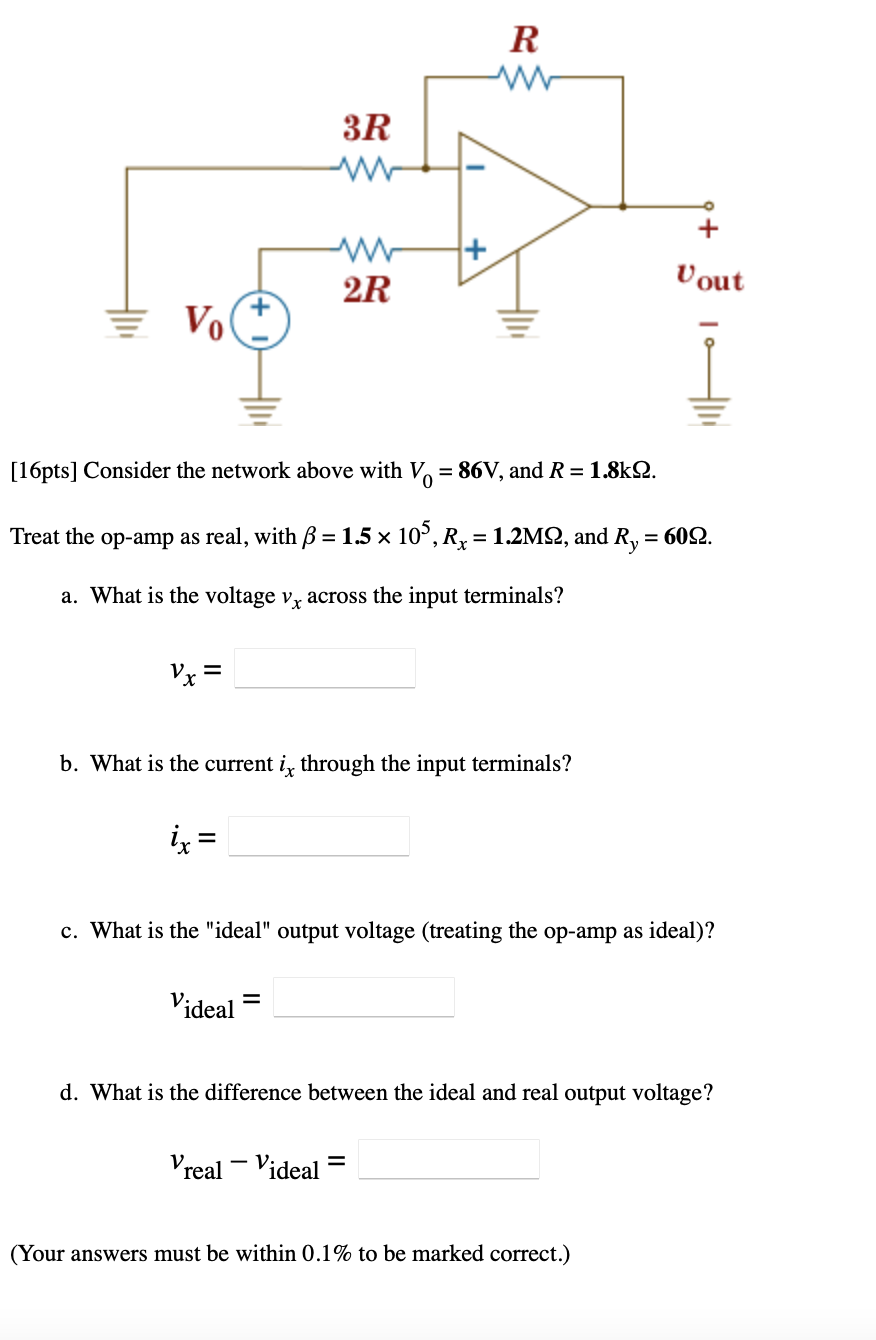

Vo Vx = ix = [16pts] Consider the network above with V₁ = 86V, and R = 1.8kQ. Treat the op-amp as real, with ß = 1.5 × 10³, R₂ = 1.2MQ, and R₂ = 602. a. What is the voltage vx across the input terminals? 3R b. What is the current ix through the input terminals? Videal ww 2R = R www c. What is the "ideal" output voltage (treating the op-amp as ideal)? Vreal - Videal + Vout d. What is the difference between the ideal and real output voltage? = (Your answers must be within 0.1% to be marked correct.)
