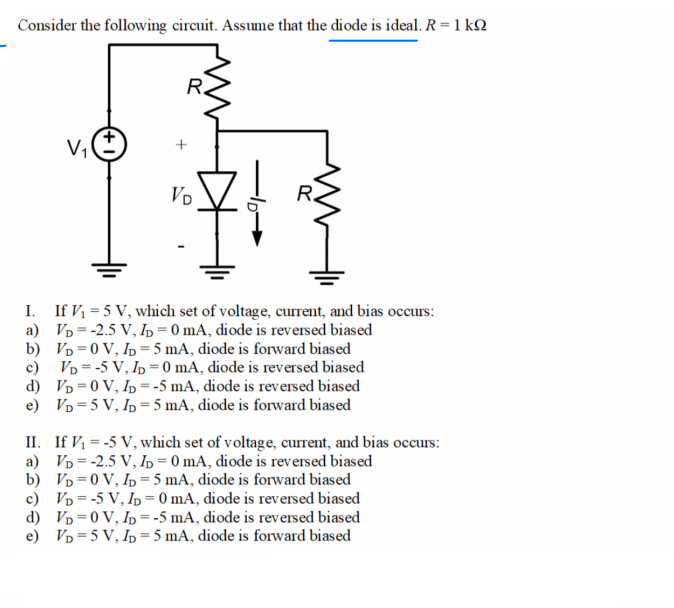

Consider the following circuit. Assume that the diode is ideal. R = 1 kn V₁ VD I. a) b) If V₁ = 5 V, which set of voltag
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Consider the following circuit. Assume that the diode is ideal. R = 1 kn V₁ VD I. a) b) If V₁ = 5 V, which set of voltag
Consider the following circuit. Assume that the diode is ideal. R = 1 kn V₁ VD I. a) b) If V₁ = 5 V, which set of voltage, current, and bias occurs: VD=-2.5 V, ID = 0 mA, diode is reversed biased VD=0V, ID=5 mA, diode is forward biased VD=-5 V, ID = 0 mA, diode is reversed biased VD=0 V, ID=-5 mA, diode is reversed biased e) VD=5V, ID=5 mA, diode is forward biased c) d) a) b) II. If V₁ = -5 V, which set of voltage, current, and bias occurs: VD=-2.5 V, ID = 0 mA, diode is reversed biased VD=0 V, ID=5 mA, diode is forward biased c) VD=-5 V, ID = 0 mA, diode is reversed biased d) VD=0V, ID = -5 mA, diode is reversed biased VD=5 V, ID=5 mA, diode is forward biased e)
