6. (15 points) Determine the second-order closed-loop transfer function T(s) = . The system specifications for a step-in

Post by answerhappygod »

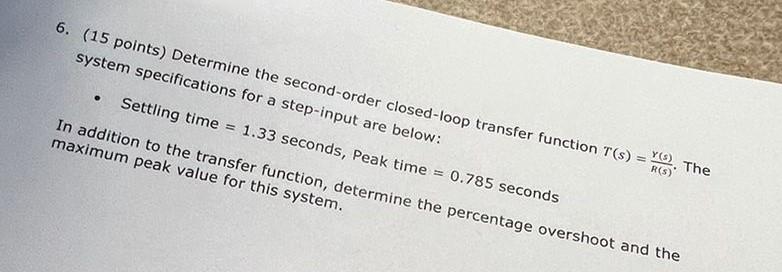

6 15 Points Determine The Second Order Closed Loop Transfer Function T S The System Specifications For A Step In 1
6 15 Points Determine The Second Order Closed Loop Transfer Function T S The System Specifications For A Step In 1 (32.03 KiB) Viewed 34 times
6. (15 points) Determine the second-order closed-loop transfer function T(s) = . The system specifications for a step-input are below: R(S) Settling time = 1.33 seconds, Peak time = 0.785 seconds In addition to the transfer function, determine the percentage overshoot and the maximum peak value for this system. ●
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
