AY-connected balanced three-phase generator with an impedance of 0.4+0.30 per phase is connected to a Y-connected balanc

Post by answerhappygod »

Ay Connected Balanced Three Phase Generator With An Impedance Of 0 4 0 30 Per Phase Is Connected To A Y Connected Balanc 1
Ay Connected Balanced Three Phase Generator With An Impedance Of 0 4 0 30 Per Phase Is Connected To A Y Connected Balanc 1 (13.59 KiB) Viewed 23 times

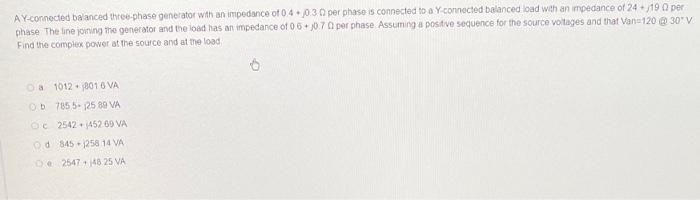

AY-connected balanced three-phase generator with an impedance of 0.4+0.30 per phase is connected to a Y-connected balanced load with an impedance of 24+19 0 per phase The line joining the generator and the load has an impedance of 06+0.70 per phase. Assuming a positive sequence for the source voltages and that Van-120 @ 30* V Find the complex power at the source and at the load Oa 1012801 6 VA Ob 7855-25 89 VA O 2542 452 69 VA Od 845 1258 14 VA O2547 48 25 VA
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
