Q1(20). Transistor parameters: B -100, Ven 0.7V, VA- for BJTs, kn-35μA/V2, VT-0.7V, and 2-0v4 for NMOS. What is the outp

Post by answerhappygod »

1
1 (528.32 KiB) Viewed 29 times

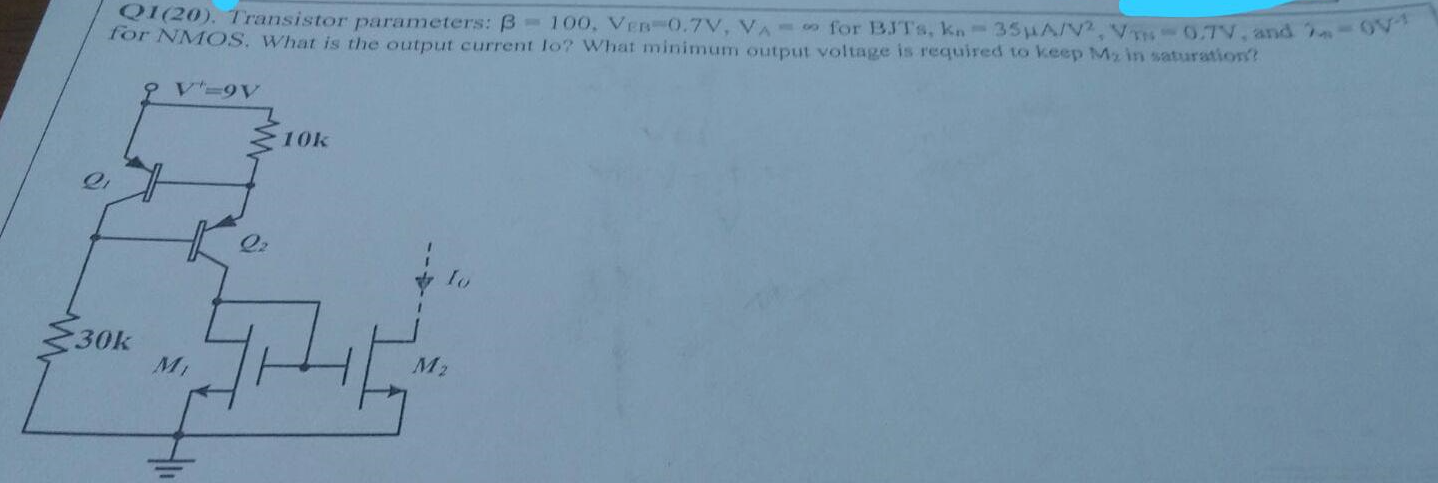

Q1(20). Transistor parameters: B -100, Ven 0.7V, VA- for BJTs, kn-35μA/V2, VT-0.7V, and 2-0v4 for NMOS. What is the output current lo? What minimum output voltage is required to keep My in saturation? 30k 9 V 9V Mi Q2 10k To M₂
