Determine the size of the inductor needed to obtain a minimumpower factor of 0.90 in a three-phase rectifier, if the linevoltage is 2300Vrms@60Hz and the current is 100A.
Determine The Size Of The Inductor Needed To Obtain A Minimum Power Factor Of 0 90 In A Three Phase Rectifier If The Li 1 (16.3 KiB) Viewed 35 times
ALL STEPS AND EXPLANATION PLEASE, CORRECT ANSWER IS INYELLOW

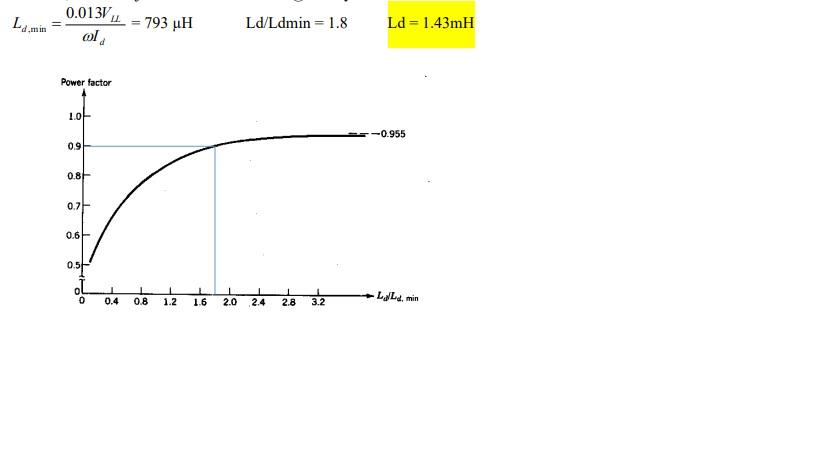

Lamin 0.013VLL cola Power factor 1.0 0.9 0.8 r 0.7- 1.2 1.6 2.0 2.4 2.8 0.6- = = 793 uH 0.5 Ld/Ldmin = 1.8 ol 1 0 0.4 0.8 3.2 Ld = 1.43mH -0.955 LaLa, min
