(17 points) The op amp in the circuit shown below is ideal. Determine the closed- loop voltage gain and the input resist

Post by answerhappygod »

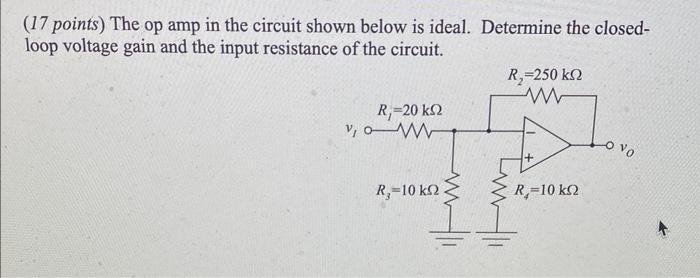

17 Points The Op Amp In The Circuit Shown Below Is Ideal Determine The Closed Loop Voltage Gain And The Input Resist 1
17 Points The Op Amp In The Circuit Shown Below Is Ideal Determine The Closed Loop Voltage Gain And The Input Resist 1 (27.9 KiB) Viewed 26 times
(17 points) The op amp in the circuit shown below is ideal. Determine the closed- loop voltage gain and the input resistance of the circuit. v, o R,=20 ΚΩ R,=10 ΚΩ R₂=250 KQ + R=10 ΚΩ Vo
