b) [25 points] A manufacturing process is represented by the following block diagram: R(s) K + solution. Where G₁(s) = 5

[answerhappygod]

B 25 Points A Manufacturing Process Is Represented By The Following Block Diagram R S K Solution Where G S 5 1 (102.17 KiB) Viewed 48 times

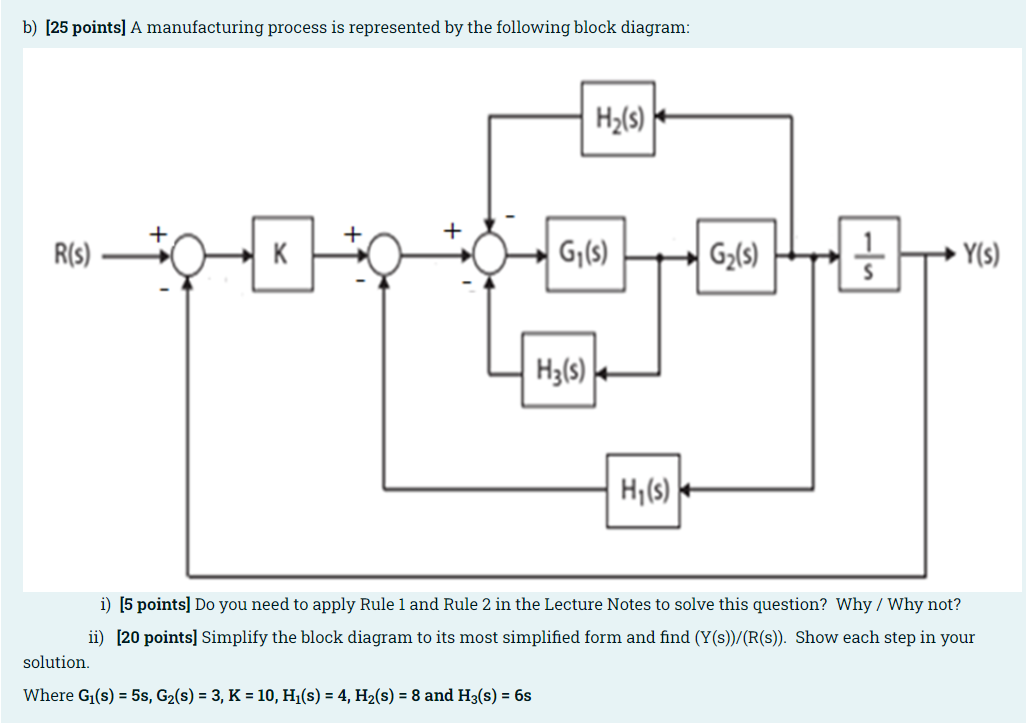

b) [25 points] A manufacturing process is represented by the following block diagram: R(s) K + solution. Where G₁(s) = 5s, G₂(s) = 3, K = 10, H₁(s) = 4, H₂(s) = 8 and H3(s) = 6s H₂(s) G₁(s) H3(s) H₁ (s) G₂(s) Y(s) i) [5 points] Do you need to apply Rule 1 and Rule 2 in the Lecture Notes to solve this question? Why / Why not? ii) [20 points] Simplify the block diagram to its most simplified form and find (Y(s))/(R(s)). Show each step in your
