Question 1 [30 points] Consider the an LTI system with input x[n] and impluse response h[n] shown below. Use C = 3, B =

[answerhappygod]

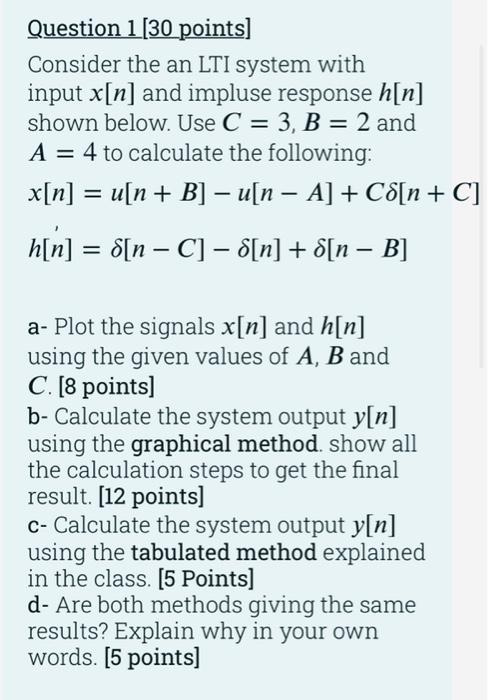

Question 1 30 Points Consider The An Lti System With Input X N And Impluse Response H N Shown Below Use C 3 B 1 (58.83 KiB) Viewed 26 times

Question 1 [30 points] Consider the an LTI system with input x[n] and impluse response h[n] shown below. Use C = 3, B = 2 and A = 4 to calculate the following: x[n] = u[n + B] – u[n – A] + C8[n+C] - h[n] = 8[n - C] - d[n] + d[n − B] - a- Plot the signals x[n] and h[n] using the given values of A, B and C. [8 points] b- Calculate the system output y[n] using the graphical method. show all the calculation steps to get the final result. [12 points] c- Calculate the system output y[n] using the tabulated method explained in the class. [5 Points] d- Are both methods giving the same results? Explain why in your own words. [5 points]
